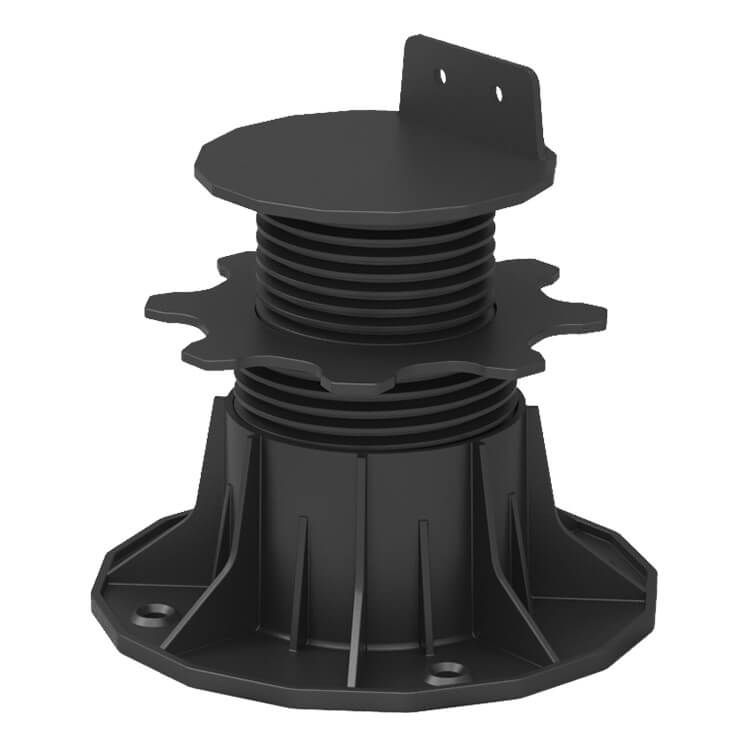

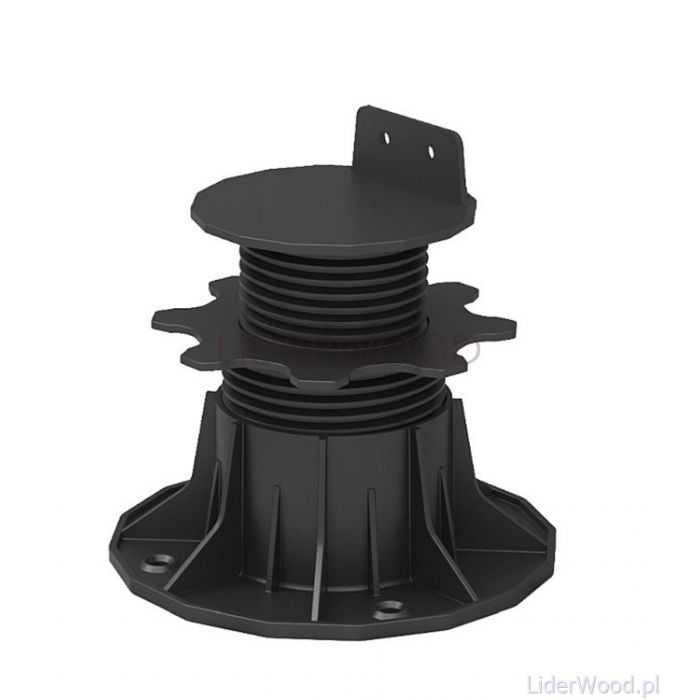

Adjustable Joist Pedestal ETL 66-145 mm

Product code: L4764
  €3.17 /pc.
Quantity must be between 1 and 10000
Sum: 3.17
SKU: 5903933669328
Use: under joists, ventilated terraces, balconies, gazebos, pathways, platforms
Description

Adjustable Joist Pedestal ETL 66-145 mm

Key features:

  • fast, simple, and cost-effective installation of the supporting structure
  • easy leveling of floors
  • smooth height adjustment
  • possibility of routing installations under the terrace

Use:

under joists, ventilated terraces, balconies, gazebos, pathways, platforms

Technical details:

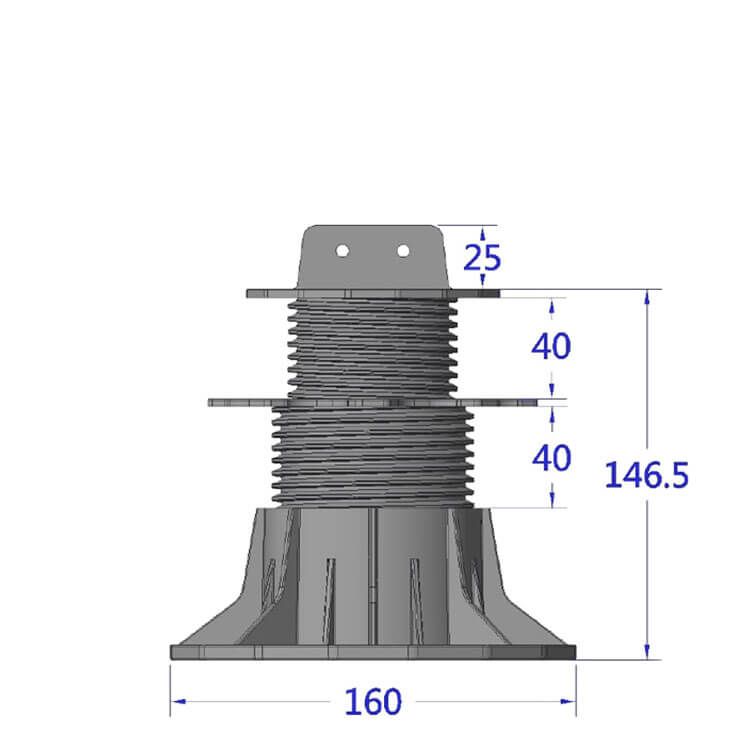

  • min. height - 66 mm
  • max. height - 145 mm

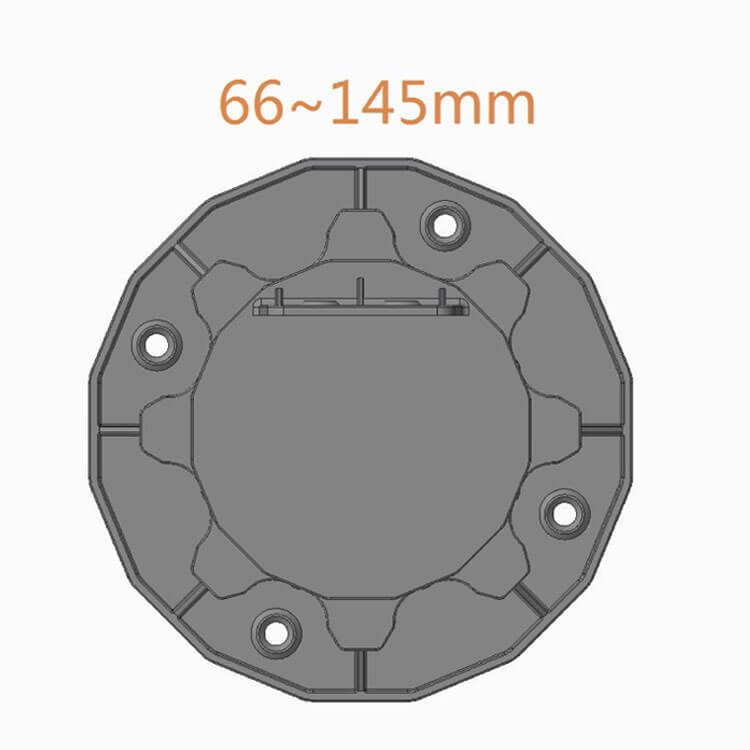

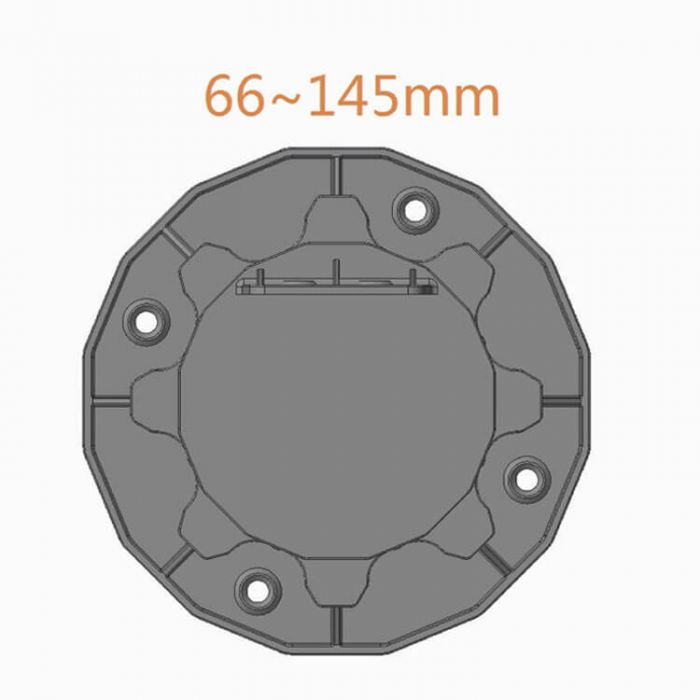

  • foot diameter - 160mm
  • upper plate diameter - 100mm
  • leaf height - 25mm

The quality of our pedestals has been confirmed by tests conducted by the Polish Institute of Building Technology and the European Certificate.

For sloping ground, the use of dedicated levelling discs made of reinforced polypropylene is required.

The pedestals are mounted to the substrate using 6 x 40 or 6 x 60 mm quick release dowels (depending on the thickness of the substrate). The joists are screwed to the pedestal using 3.5 x 25 mm fine threaded stainless steel metal screws.

You might need levelling discs.

Dedicated levelling discs made of reinforced polypropylene are available for the terrace pedestals. For use both under joist supports and under stoneware tile supports.

The disc levels the ground by 1%, 2% or 3%.

 width=

You might need rubber joist shims

The rubber joist shim is made of SBR granulate and polyurethane binder. The product is used in the construction industry as a vibration dampening element, soundproofing floors, terraces, landings.


 width=

The quality of our pedestals has been confirmed by tests conducted by the Polish Institute of Building Technology and the European Certificate.

 width=

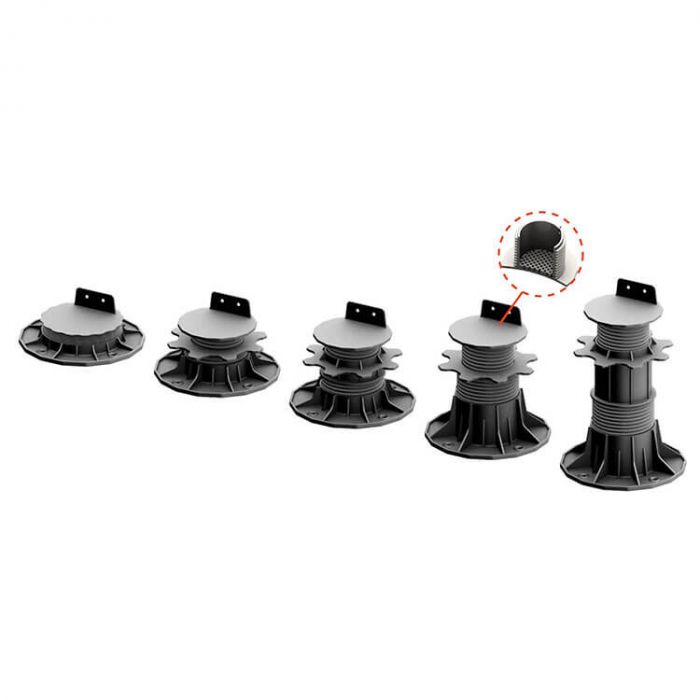

Available sizes:

  • Adjustable joist pedestal ETL 140-220 mm
  • Adjustable joist pedestal ETL 18-32 mm
  • Adjustable joist pedestal ETL 35-70 mm
  • Adjustable joist pedestal ETL 66-145 mm
  • Adjustable joist pedestal ETL 10-15 mm
Parameters
Intended Use For joists
Adjustment Range 66-145 mm
Series ETL
Material Plastic
Assembly and documents

Wsporniki montuje się do podłoża za pomocą kołków 6 × 40 mm lub 6 × 60 mm (w zależności od grubości podłoża).

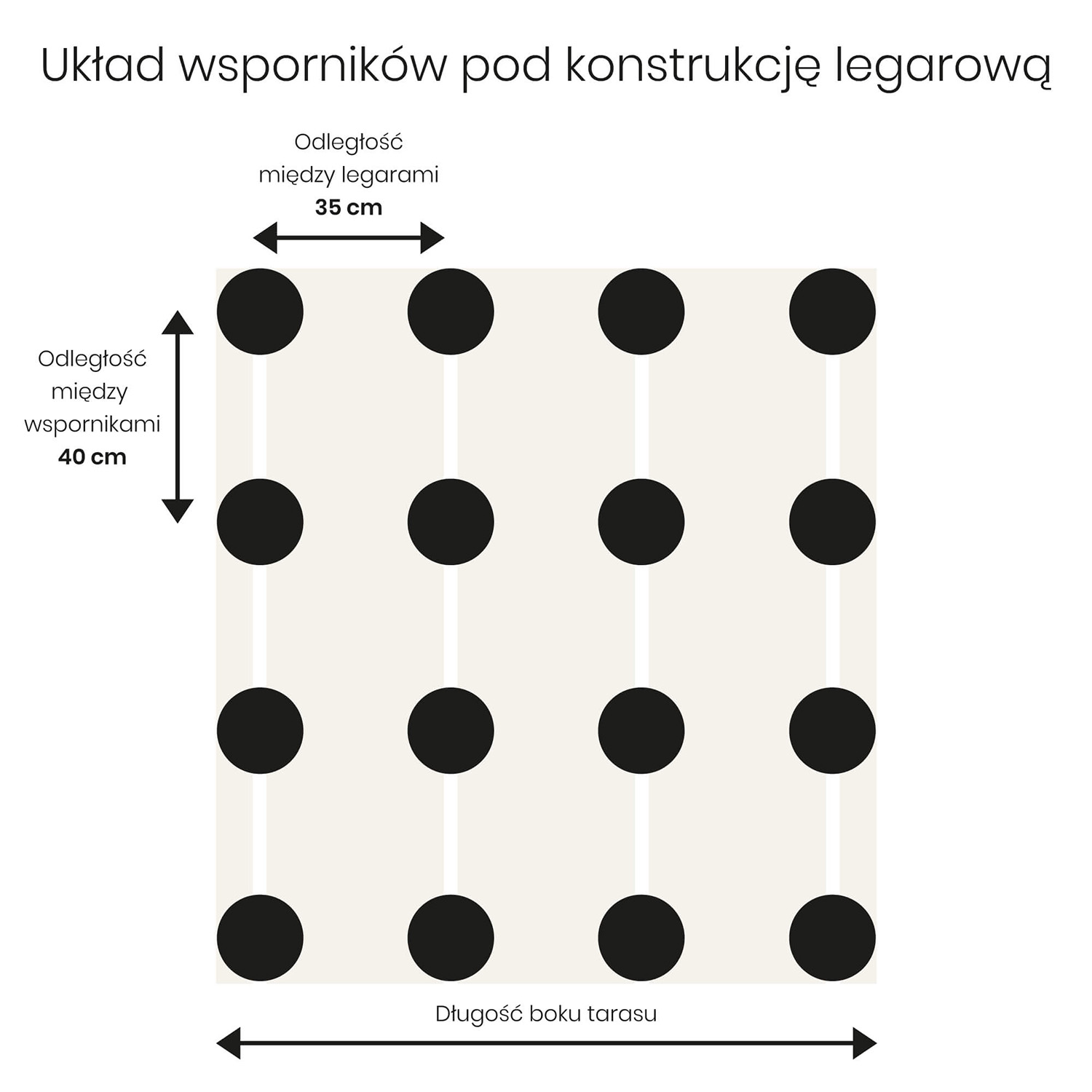

Odstępy między legarami powinny wynosić maksymalnie 35 cm, licząc od ich środka. Legary muszą być podparte w co najmniej 3 miejscach. Odległość między wspornikami powinna wynosić nie więcej niż 40 cm.

W przypadku innych desek warto sprawdzić zalecenia ich producenta, szczególnie jeśli różnią się wymiarami.

Legary do wspornika przykręcamy za pomocą wkrętów nierdzewnych do metalu o drobnym gwincie o wymiarach 3,5 x 25 mm.
