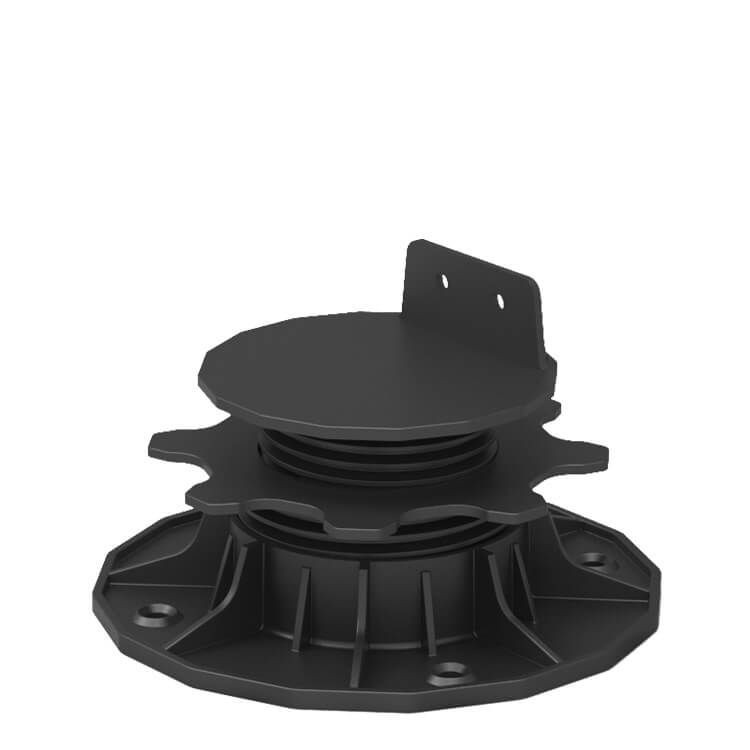

Adjustable Joist Pedestal ETL 35-70 mm
Description
Adjustable Joist Pedestal ETL 35-70 mm
Key features:- fast, simple, and cost-effective installation of the supporting structure
- easy leveling of floors
- smooth height adjustment
- possibility of routing installations under the terrace

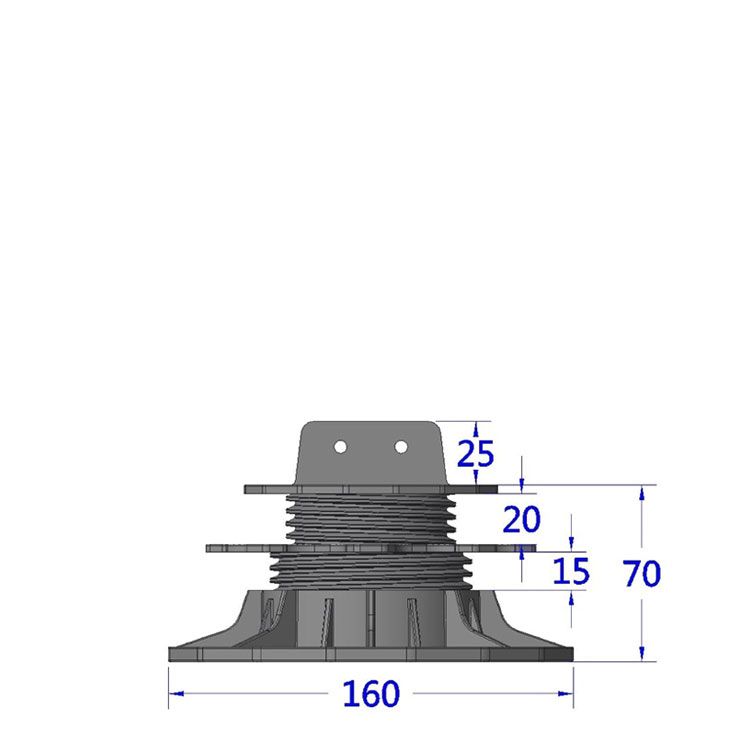

- min. height - 35 mm
- max. height - 70 mm
- foot diameter - 160mm
- upper plate diameter - 100mm
- leaf height - 25mm

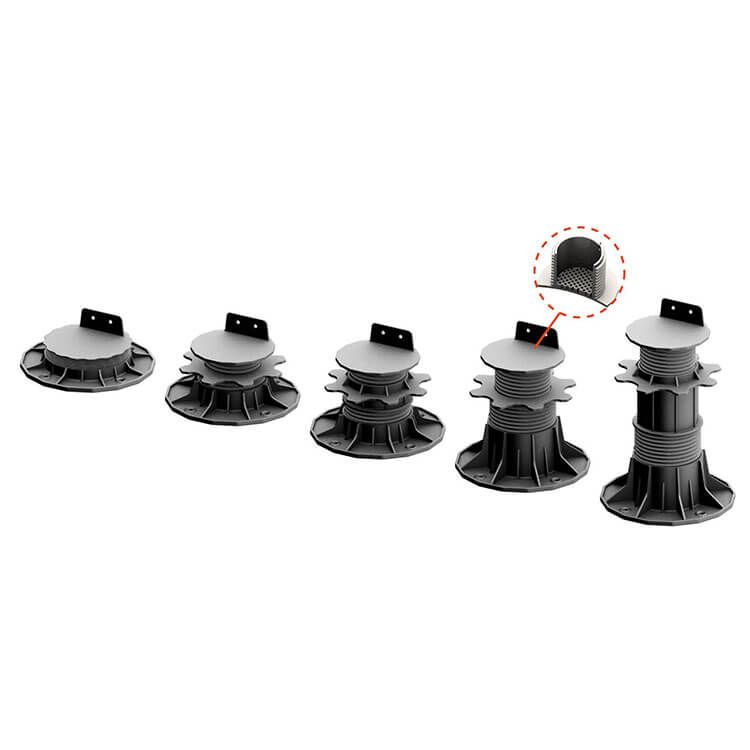

- Adjustable joist pedestal ETL 140-220mm
- Adjustable joist pedestal ETL 18-32 mm
- Adjustable joist pedestal ETL 35-70 mm
- Adjustable joist pedestal ETL 66-145 mm
- Adjustable joist pedestal ETL 10-15 mm
Parameters
| Intended Use | For joists |
|---|---|
| Adjustment Range | 35-70 mm |
| Series | ETL |
| Material | Plastic |
Assembly and documents
Wsporniki montuje się do podłoża za pomocą kołków 6 × 40 mm lub 6 × 60 mm (w zależności od grubości podłoża).
Odstępy między legarami powinny wynosić maksymalnie 35 cm, licząc od ich środka. Legary muszą być podparte w co najmniej 3 miejscach. Odległość między wspornikami powinna wynosić nie więcej niż 40 cm.
W przypadku innych desek warto sprawdzić zalecenia ich producenta, szczególnie jeśli różnią się wymiarami.
Legary do wspornika przykręcamy za pomocą wkrętów nierdzewnych do metalu o drobnym gwincie o wymiarach 3,5 x 25 mm.
Do pobrania
Ask about the product
Do you have a question about this product?
Write to us — we will be happy to help and answer all your questions.
