Adjustable Tiles Pedestal ETP 18-32 mm

Product code: L4331
  €1.46 /pc.
Quantity must be between 1 and 10000
Sum: 1.46
SKU: 5903933669014
Adjustable Tiles Pedestal ensures a solid foundation for your terrace. Easy installation and durable construction. Resistant to weather conditions.
Description

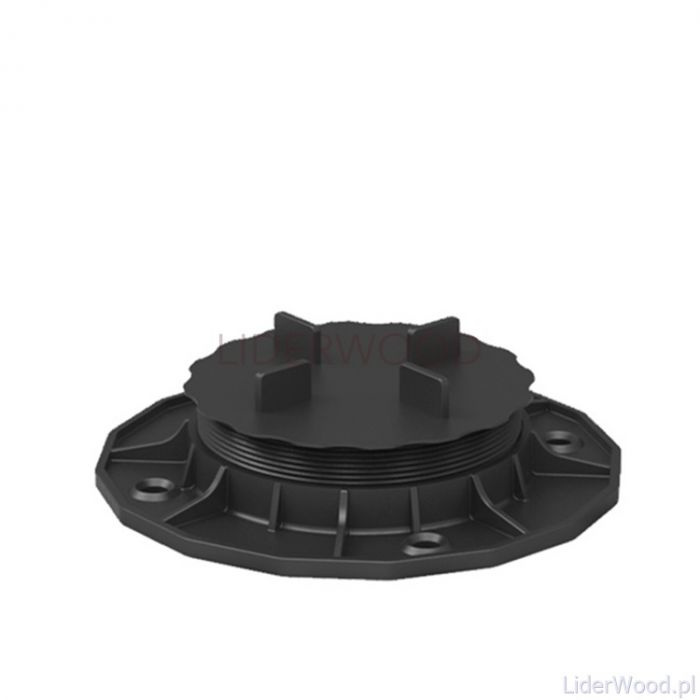

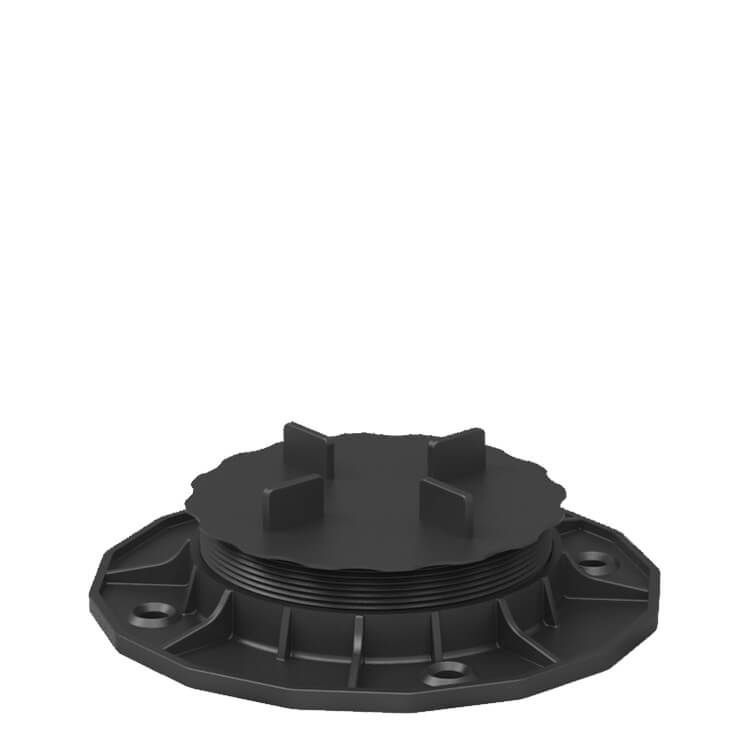

Adjustable Tiles Pedestal for ETP Tiles 18-32mm

Key features:

  • fast, simple, and cost-effective installation
  • easy leveling of the tiles
  • smooth height adjustment - works by rotating two halves of the brackets in opposite directions, causing the brackets to be raised or lowered within the range of 18-32mm
  • possibility of routing installations under the tiles
  • suitable for residential as well as public or industrial buildings
The brackets are mounted to the substrate using 6x40mm or  6x60mm quick release dowels (depending on the thickness of the substrate).

Use:

ventilated terraces, stoneware tiles Sloping ground requires the use of special reinforced polypropylene levelling discs.

Accessories:

Dedicated shock-absorbing pads are available for supports. The pads are used to dampen footstep sounds and vibrations. Ceramic tiles laid on the pads do not produce sounds, are more stable, and do not creak with slight movement. The pads are made of very durable and weather-resistant rubber/PVC material, resistant to weather conditions and UV radiation. The pads can be used to adjust minor height differences between the plates. The available thickness of the pads for adjustable ETP supports is 1.5 mm and 2 mm.

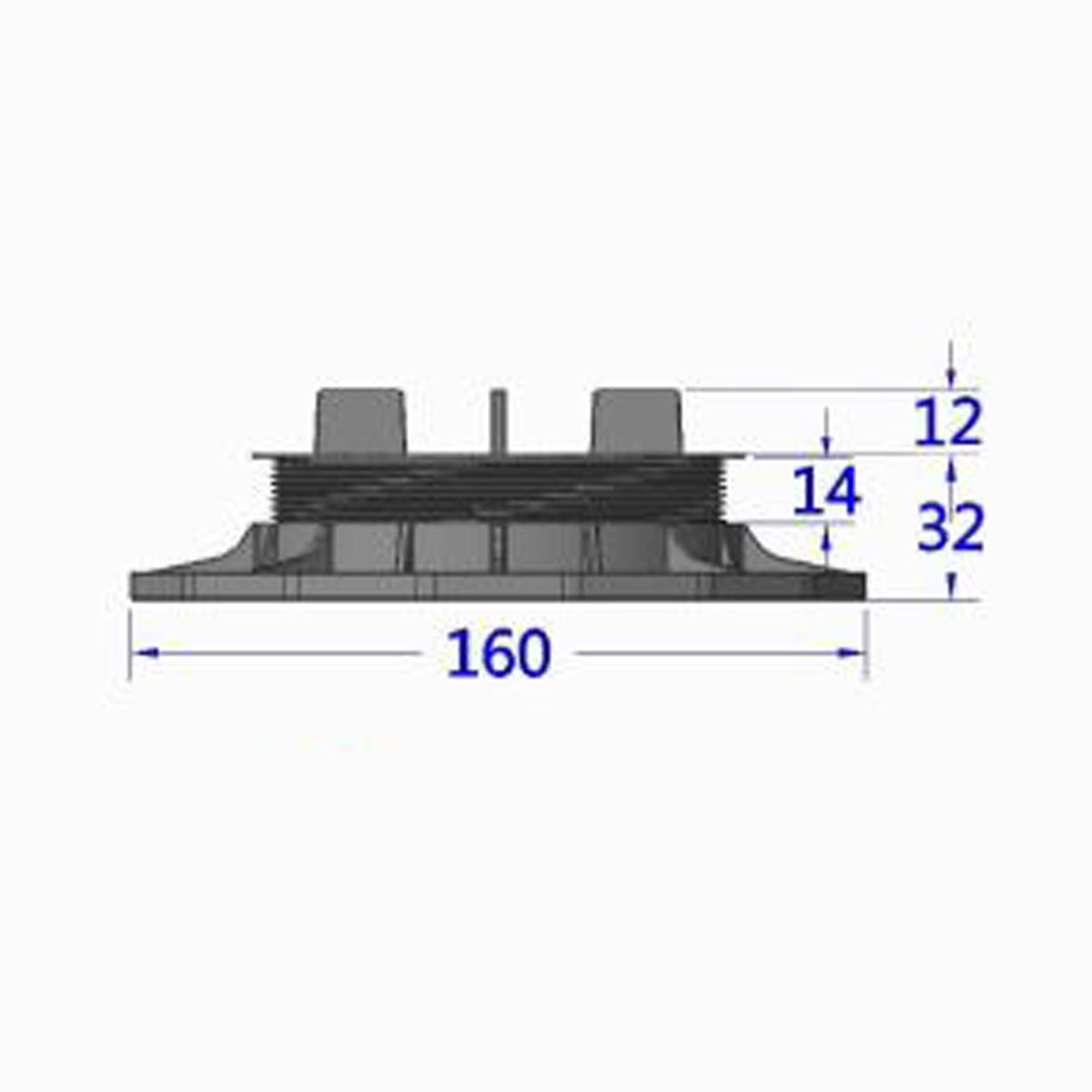

Technical details:

  • min. pedestal height – 18 mm
  • max. pedestal height – 32 mm
  • foot diameter – 160 mm
  • upper plate diameter – 100 mm
  • grout width – 3 mm
  • carrying capacity - approx. 545 kg
The quality of our brackets has been confirmed by tests carried out by the Polish Building Research Institute and by the European Certificate.

Parameters
Intended Use For tiles
Adjustment Range 18-32 mm
Material Plastic
Assembly and documents

Do wsporników dostępne są podkładki amortyzujące (1,5 oraz 2 mm), które:

  • wygłuszają kroki i drgania

  • stabilizują płyty

  • eliminują chrzęst przy przesunięciach

  • pozwalają skorygować drobne różnice wysokości

Przy pochyłym podłożu wymagane jest korzystanie z dedykowanych dysków poziomujących ze wzmocnionego polipropylenu.






Wsporniki montuje się do podłoża za pomocą kołków 6 × 40 mm lub 6 × 60 mm (w zależności od grubości podłoża).

Płyty tarasowe w naszej ofercie mają wymiary 60 x 60 cm. Przy tej wielkości producent rekomenduje podparcie w 4 miejscach (w każdym rogu). W związku z tym odległość między wspornikami wynosić powinna 60 cm.

W przypadku innych płyt warto sprawdzić zalecenia ich producenta, szczególnie jeśli są większe (mogą np. wymagać podparcia również na środku).

Wsporniki do podłoża montuje się do podłoża za pomocą kołków szybkiego montażu 6 x 40 lub 6 x 60 mm (w zależności od jego grubości).


Do pobrania
