Adjustable Tiles Pedestal ensures a solid foundation for your terrace. Easy installation and durable construction. Resistant to weather conditions.
Description

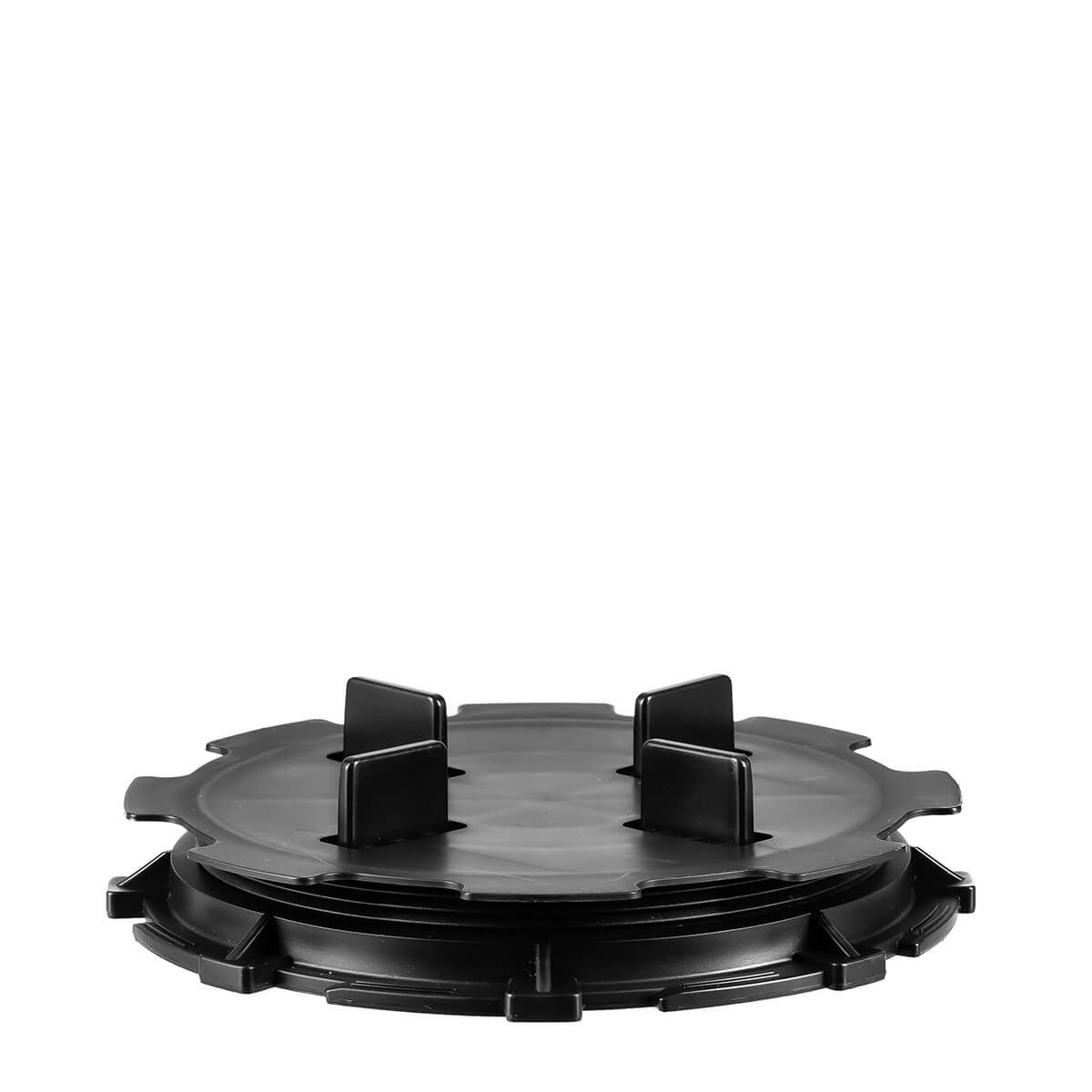

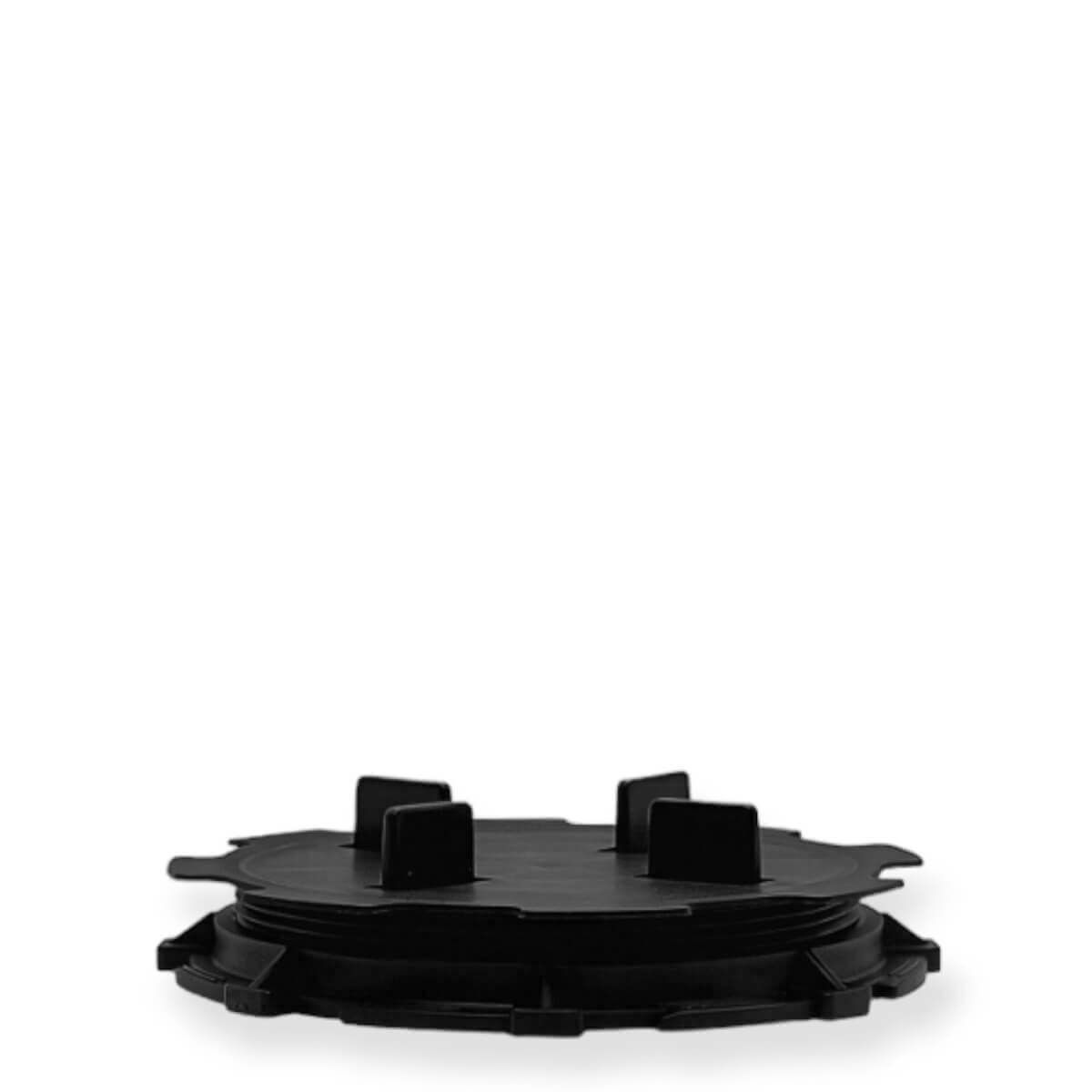

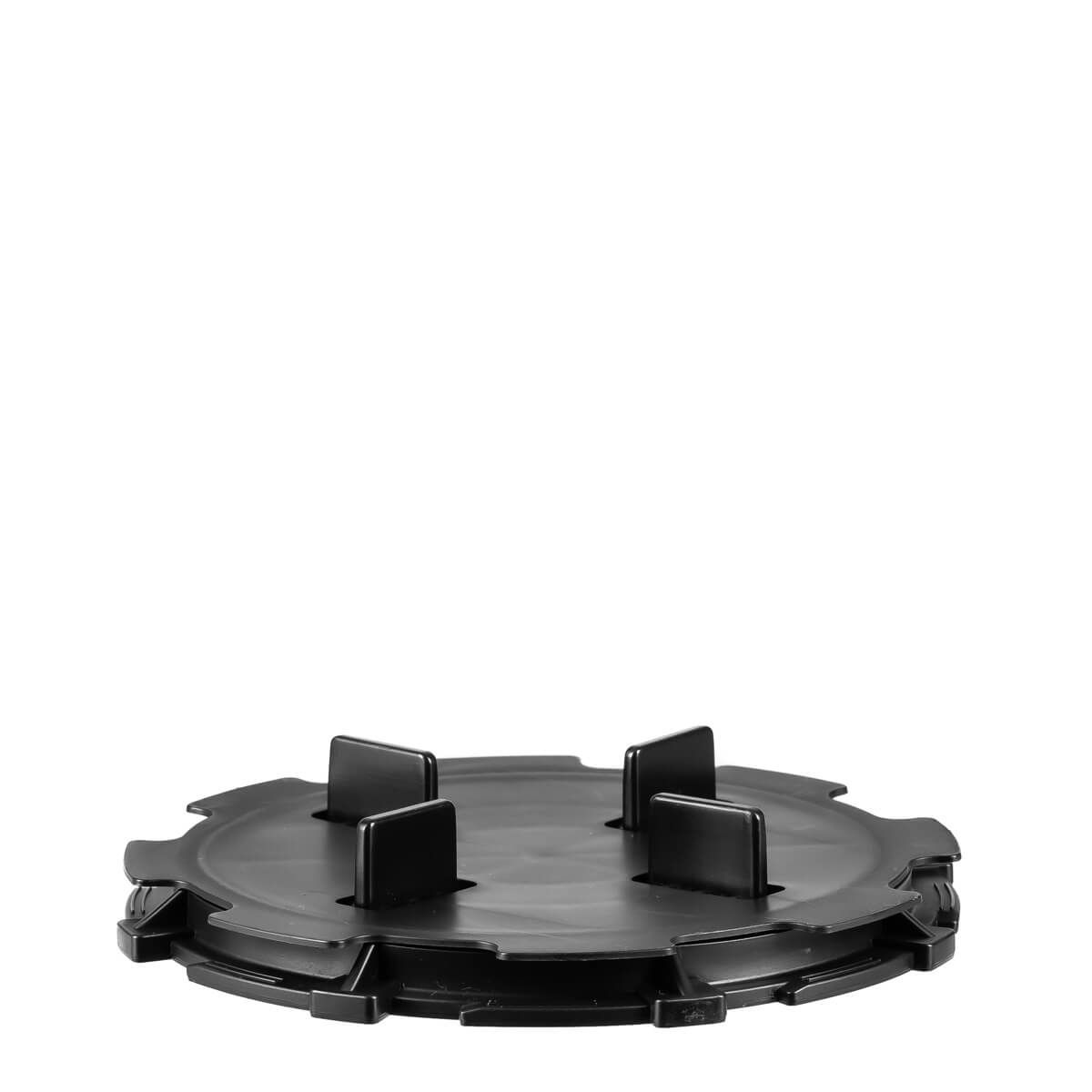

Adjustable Tiles Pedestal for ETP Tiles 10-15 mm
Key features:
fast, simple, and cost-effective installation
easy leveling of the tiles
smooth height adjustment - works by rotating two halves of the brackets in opposite directions, causing the brackets to be raised or lowered within the range of 10-15mm
possibility of routing installations under the tiles
suitable for residential as well as public or industrial buildings
Innovative solution on the market for such low pedestals.

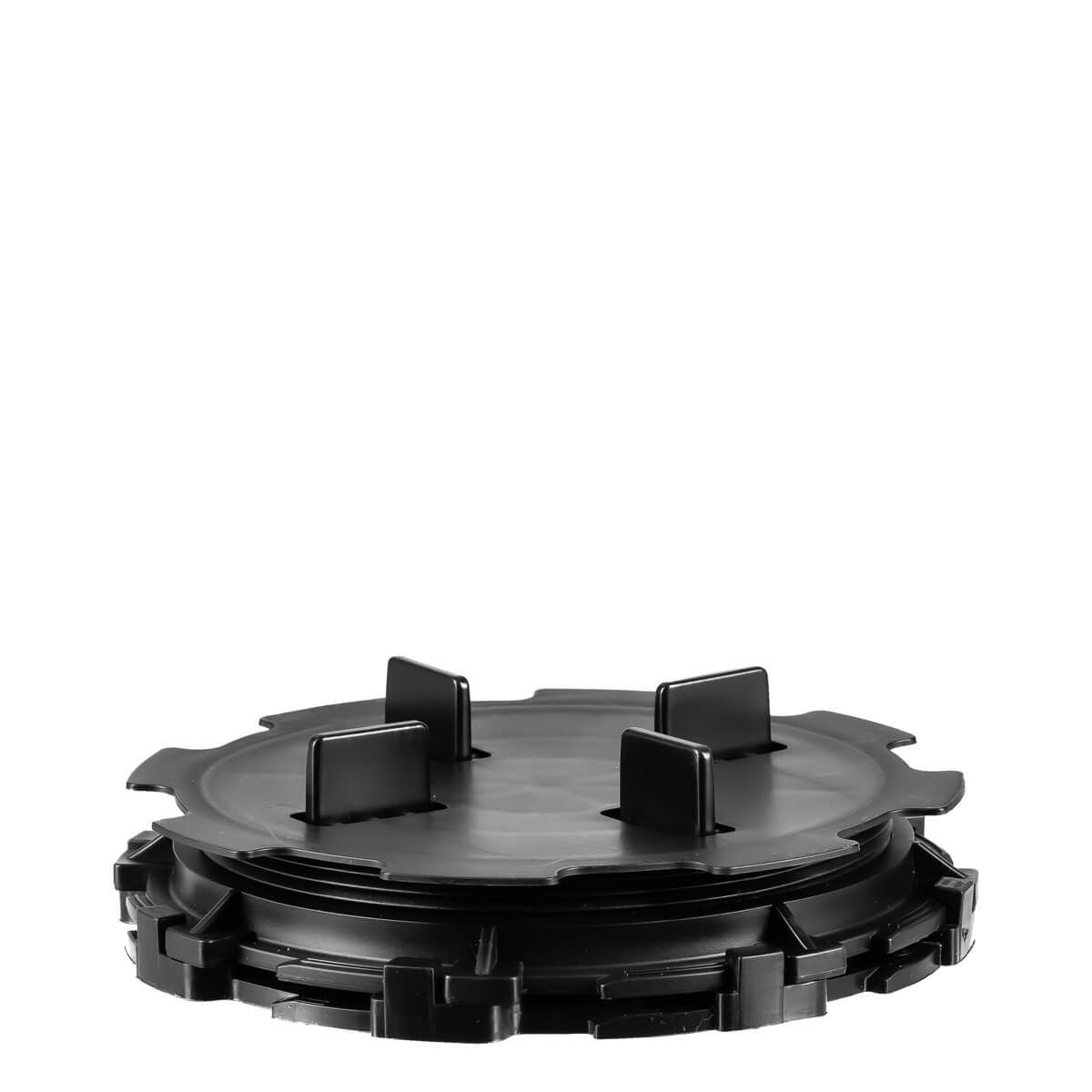

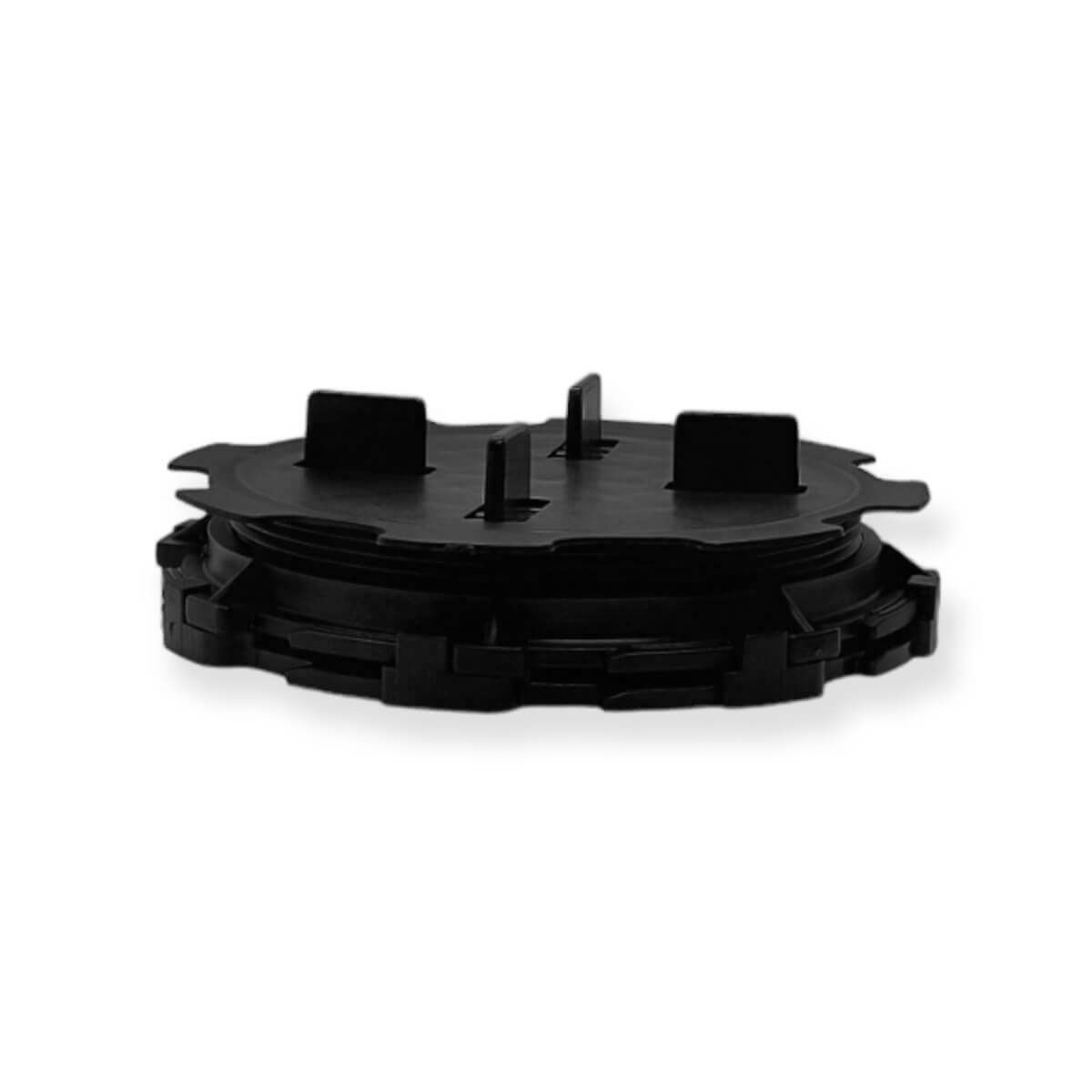

Smooth adjustment of the support – allows achieving any height from 10 to 15 mm, and with the extension, it can reach from 20 to 25 mm.
Useventilated terraces, stoneware tiles
Accessories
Dedicated shock-absorbing pads are available for supports. The pads are used to dampen footstep sounds and vibrations. Ceramic tiles laid on the pads do not produce sounds, are more stable, and do not creak with slight movement.The pads are made of very durable and weather-resistant rubber/PVC material, resistant to weather conditions and UV radiation.The pads can be used to adjust minor height differences between the plates. The available thickness of the pads for adjustable ETP supports is 1.5 mm and 2 mm.Don't forget the extension for the pedestal.
[gallery size="medium" columns="2" ids="42799,42800"]

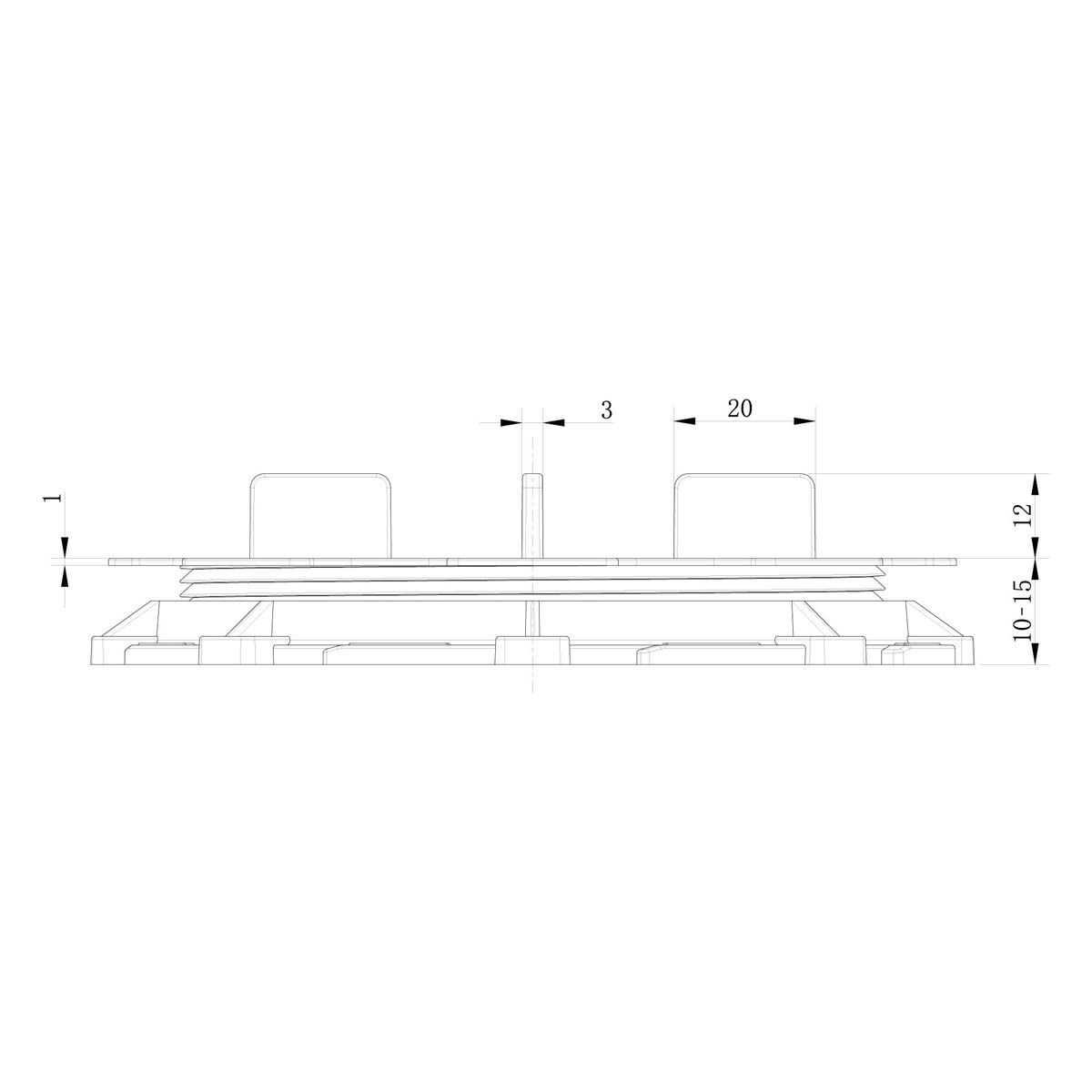

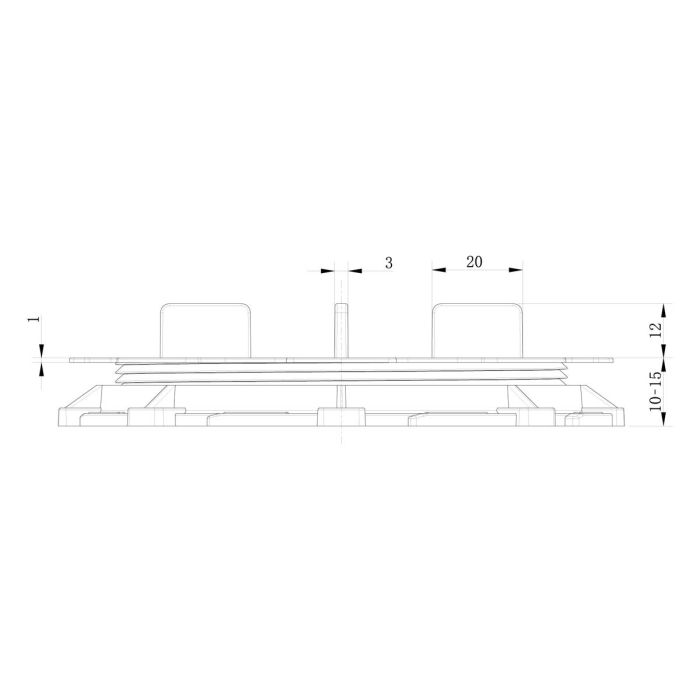

Dane techniczne:

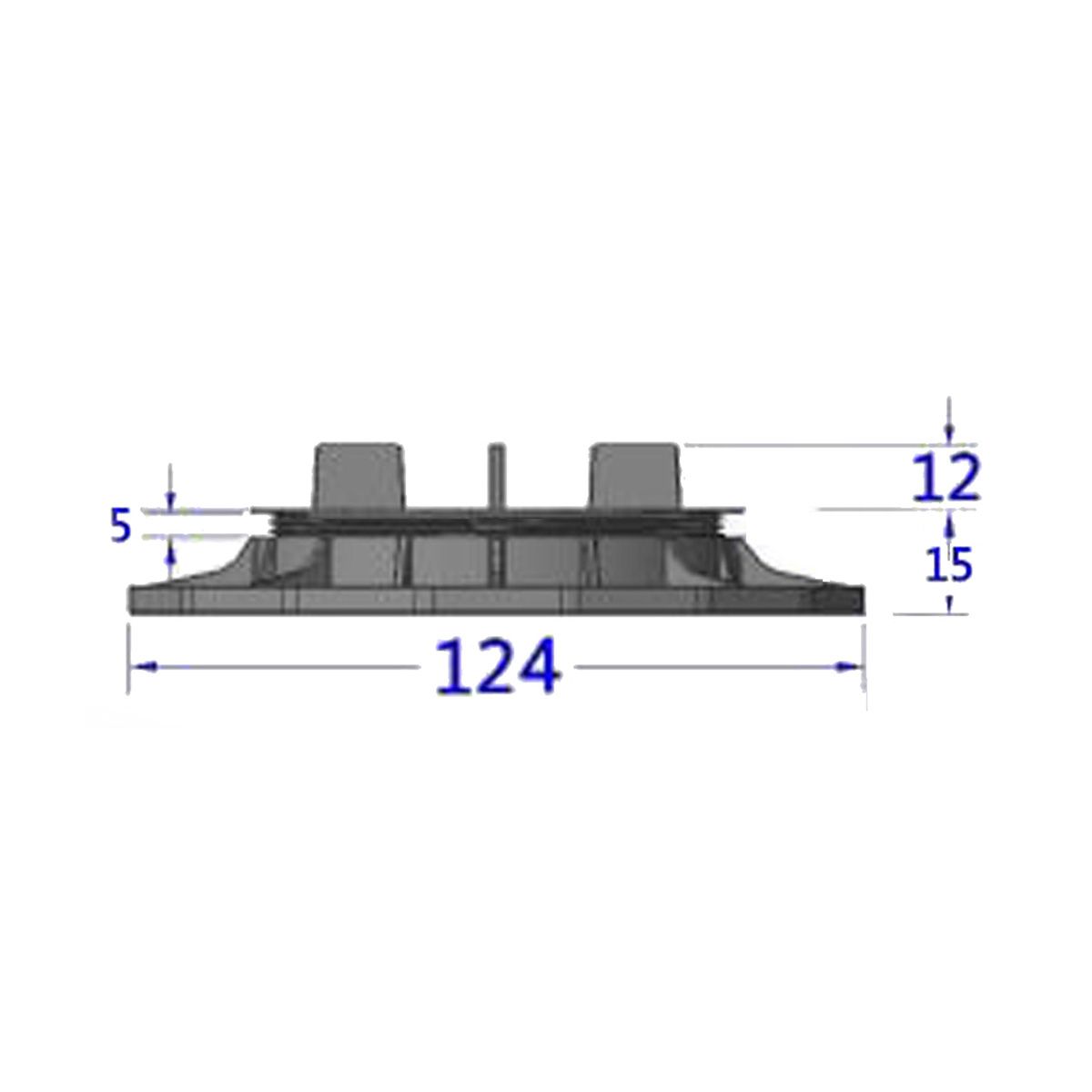

min. wysokość wspornika – 10 mm (15 mm z przedłużką)
max. wysokość wspornika – 15 mm (20 mm z przedłużką)

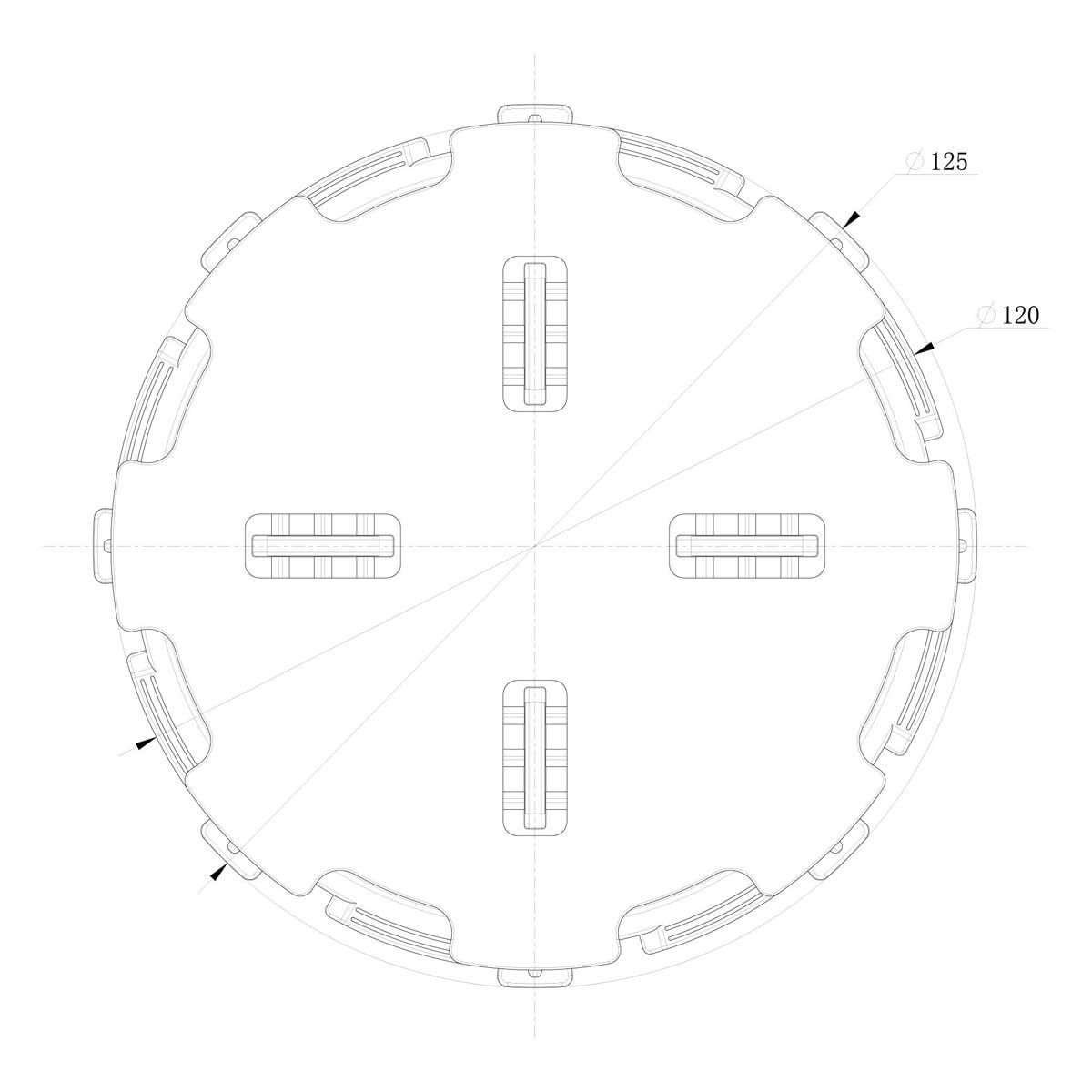

średnica stopy – 125 mm
średnica górnego talerza – 120 mm
szerokość fugi – 3 mm
Parameters
Intended Use
For tiles
Adjustment Range
10-15 mm
Series
ETP
Material
Plastic
Assembly and documents
Do wsporników dostępne są podkładki amortyzujące (1,5 oraz 2mm), które:
Wsporniki montuje się do podłoża za pomocą kołków 6 × 40mm lub 6 × 60mm (wzależności od grubości podłoża).
Płyty tarasowe w naszej ofercie mają wymiary 60 x 60 cm. Przy tej wielkości producent rekomenduje podparcie w 4 miejscach (w każdym rogu). W związku z tym odległość między wspornikami wynosić powinna 60 cm.
W przypadku innych płyt warto sprawdzić zalecenia ich producenta, szczególnie jeśli są większe (mogą np. wymagać podparcia również na środku).
