Adjustable Self-Leveling Tiles Pedestal ETP Flex 75-156 mm
Out of stock
Description
Adjustable Self-Leveling Tiles Pedestal ETP Flex 75-156 mm
Key features:
- Ability to be used on surfaces with slopes up to 5%

- Fast, simple, and cost-effective installation of the supporting structure
- Easy leveling of plates and joists
- Smooth height adjustment
- Possibility of routing installations under the plates
- Reduction of the floor's weight
- Free drainage of water
- Continuous air circulation
- Frost - resistant
Technical details:
- Load capacity: 200kg per pedestal
- Material: Reinforced polypropylene (PP)
- Resistance to acids and bases
- Resistance to UV radiation
- Resistance to temperatures from -20°C to +60°C
- High resistance to impacts, cracks, and weather conditions
- Optimal pressure distribution
- 100% recyclable material
You might also need Shock-Absorbing Pads.
Dedicated shock-absorbing pads are available for pedestals. The pads are used to dampen footstep sounds and vibrations. Ceramic tiles laid on the pads do not produce sounds, are more stable, and do not creak with slight movement. The pads are made of very durable and weather-resistant rubber/PVC material, resistant to weather conditions and UV radiation. The pads can be used to adjust minor height differences between the plates. The available thickness of the shock-absorbing pads for adjustable self-leveling Flex head supports is 3 mm.Dimensions:

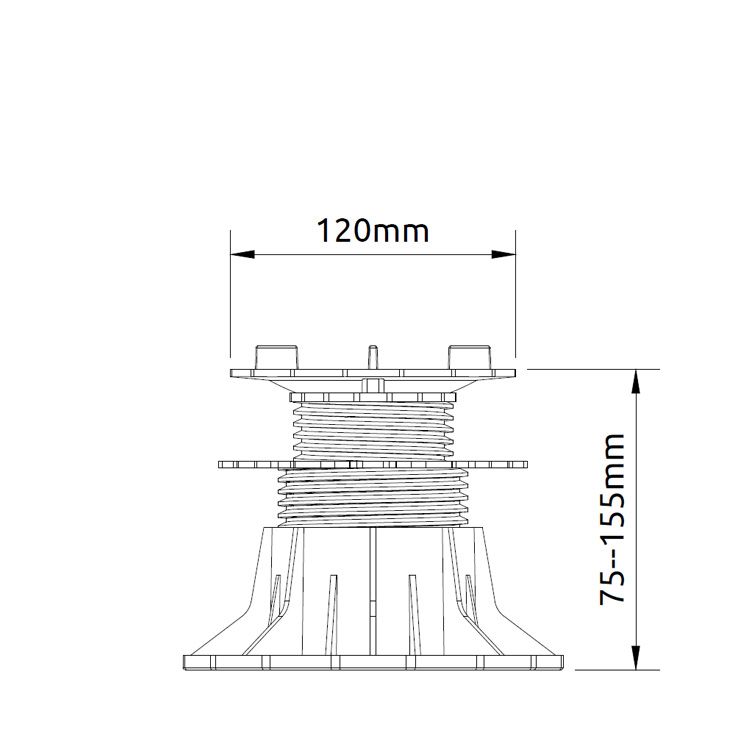

- Minimum support height - 75 mm
- Maximum support height - 156 mm
- Foot diameter - 160 mm
- Upper plate diameter - 120 mm
- Grout width - 3 mm
Available sizes:
- Adjustable Self-Leveling Tiles Pedestal ETP Flex 25-30mm
- Adjustable Self-Leveling Tiles Pedestal ETP Flex 30-45mm
- Adjustable Self-Leveling Tiles Pedestal ETP Flex 45-80mm
- Adjustable Self-Leveling Tiles Pedestal ETP Flex 150-230mm
Parameters
| Intended Use | For tiles |
|---|---|
| Adjustment Range | 75-156 mm |
| Series | ETP FLEX |
| Material | Plastic |
Assembly and documents
Do wsporników dostępne są podkładki amortyzujące (3 mm), które:
-
wygłuszają kroki i drgania
-
stabilizują płyty
-
eliminują chrzęst przy przesunięciach
-
pozwalają skorygować drobne różnice wysokości


Podkładka amortyzująca


Wspornik z podkładką
Wsporniki montuje się do podłoża za pomocą kołków 6 × 40 mm lub 6 × 60 mm (w zależności od grubości podłoża).
Płyty tarasowe w naszej ofercie mają wymiary 60 x 60 cm. Przy tej wielkości producent rekomenduje podparcie w 4 miejscach (w każdym rogu). W związku z tym odległość między wspornikami wynosić powinna 60 cm.
W przypadku innych płyt warto sprawdzić zalecenia ich producenta, szczególnie jeśli są większe (mogą np. wymagać podparcia również na środku).
Wsporniki do podłoża montuje się do podłoża za pomocą kołków szybkiego montażu 6 x 40 lub 6 x 60 mm (w zależności od jego grubości).

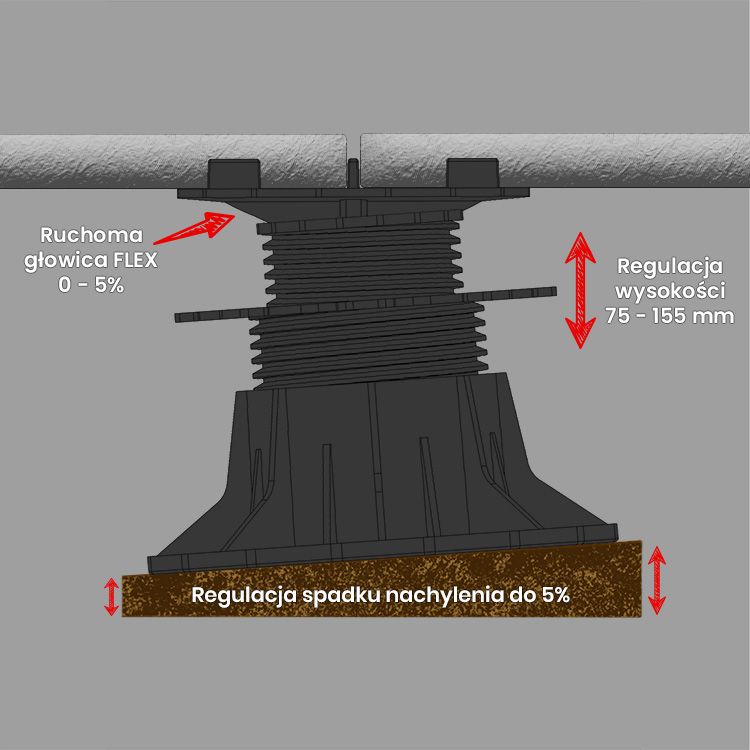

Wsporniki regulowane ETP FLEX to wsporniki samopoziomujące, dzięki którym można regulować spadek nachylenia do 5%.
