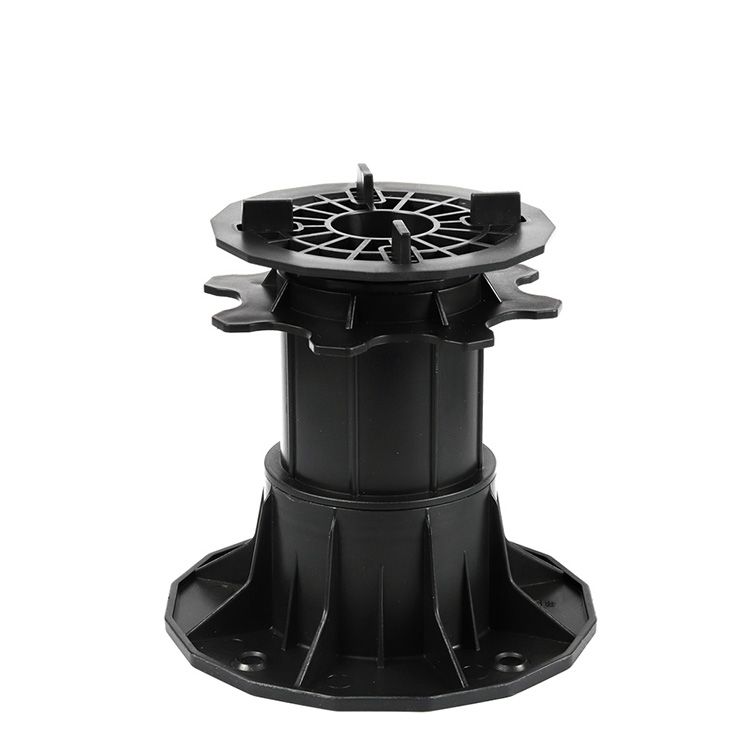

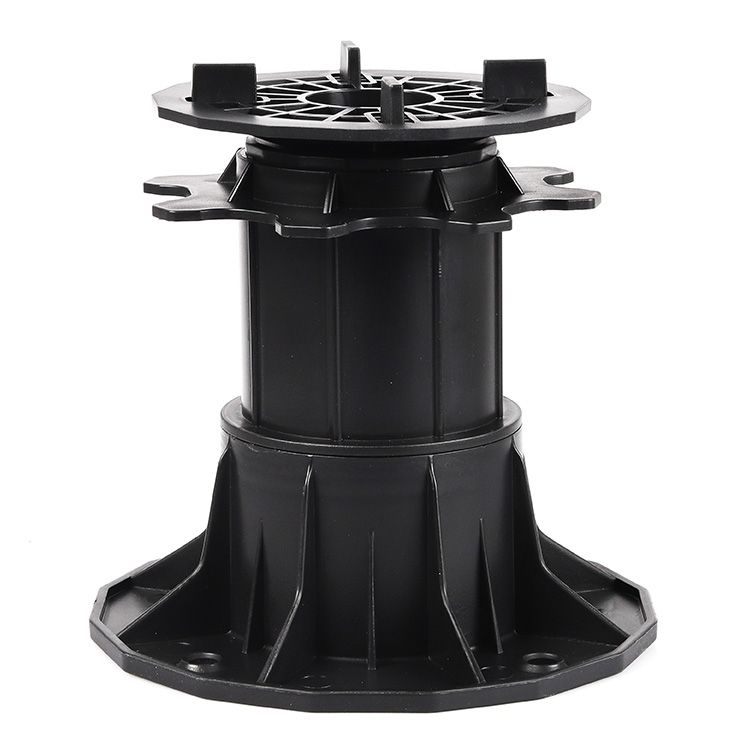

Adjustable Self-Leveling Tiles Pedestal ETP Flex 150-230 mm

Product code: L8309
  €3.91 /pc.
Quantity must be between 1 and 10000
Sum: 3.91
SKU: 5903933669120
Use: Ventilated terraces, stoneware tiles
Description

Adjustable Self-Leveling Tiles Pedestal ETP Flex 150-230 mm

Key features:

  • Ability to be used on surfaces with slopes up to 5% width=
  • Fast, simple, and cost-effective installation of the supporting structure
  • Easy leveling of plates and joists
  • Smooth height adjustment
  • Possibility of routing installations under the plates
  • Reduction of the floor's weight
  • Free drainage of water
  • Continuous air circulation
  • Frost - resistant

Technical details:

  • Load capacity: 200kg per pedestal
  • Material: Reinforced polypropylene (PP)
  • Resistance to acids and bases
  • Resistance to UV radiation
  • Resistance to temperatures from -20°C to +60°C
  • High resistance to impacts, cracks, and weather conditions
  • Optimal pressure distribution
  • 100% recyclable material

Use:

Ventilated terraces, stoneware tiles Pedestals are mounted to the ground using quick-mount dowels 6 x 40 or 6 x 60 mm (depending on its thickness). You might also need Shock-Absorbing Pads. Dedicated shock-absorbing pads are available for pedestals. The pads are used to dampen footstep sounds and vibrations. Ceramic tiles laid on the pads do not produce sounds, are more stable, and do not creak with slight movement. The pads are made of very durable and weather-resistant rubber/PVC material, resistant to weather conditions and UV radiation. The pads can be used to adjust minor height differences between the plates. The available thickness of the shock-absorbing pads for adjustable self-leveling Flex head supports is 3 mm.
[gallery columns="2" size="full" ids="43084,43083"]

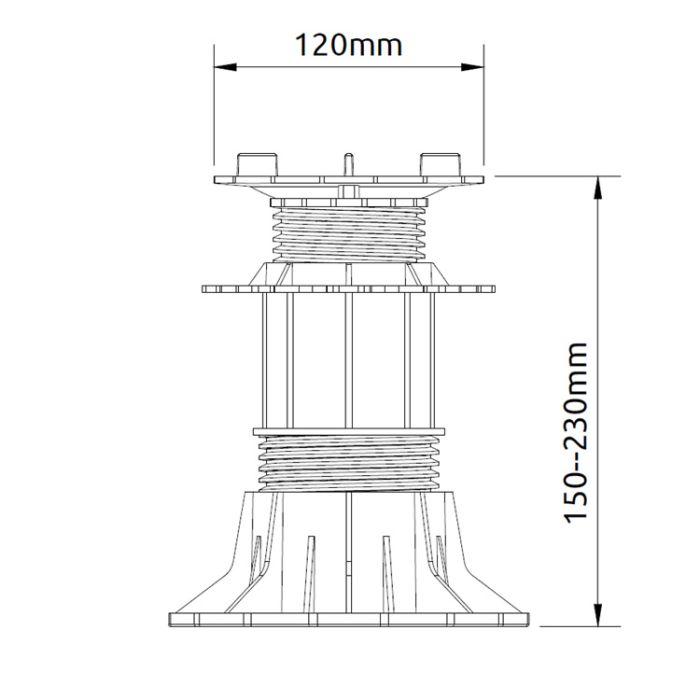

Dimensions:
  • Minimum support height - 150 mm
  • Maximum support height - 230 mm
  • Foot diameter - 160 mm
  • Upper plate diameter - 120 mm
  • Grout width - 3 mm
Available sizes:
  • Adjustable Self-Leveling Tiles Pedestal ETP Flex 25-30mm
  • Adjustable Self-Leveling Tiles Pedestal ETP Flex 30-45mm
  • Adjustable Self-Leveling Tiles Pedestal ETP Flex 45-80mm
  • Adjustable Self-Leveling Tiles Pedestal ETP Flex 75-156mm
Parameters
Intended Use For tiles
Adjustment Range 150-230 mm
Series ETP FLEX
Material Plastic
Assembly and documents

Do wsporników dostępne są podkładki amortyzujące (3 mm), które:

  • wygłuszają kroki i drgania

  • stabilizują płyty

  • eliminują chrzęst przy przesunięciach

  • pozwalają skorygować drobne różnice wysokości

Podkładka amortyzująca

Wspornik z podkładką


Wsporniki montuje się do podłoża za pomocą kołków 6 × 40 mm lub 6 × 60 mm (w zależności od grubości podłoża).

Płyty tarasowe w naszej ofercie mają wymiary 60 x 60 cm. Przy tej wielkości producent rekomenduje podparcie w 4 miejscach (w każdym rogu). W związku z tym odległość między wspornikami wynosić powinna 60 cm.

W przypadku innych płyt warto sprawdzić zalecenia ich producenta, szczególnie jeśli są większe (mogą np. wymagać podparcia również na środku).

Wsporniki do podłoża montuje się do podłoża za pomocą kołków szybkiego montażu 6 x 40 lub 6 x 60 mm (w zależności od jego grubości).

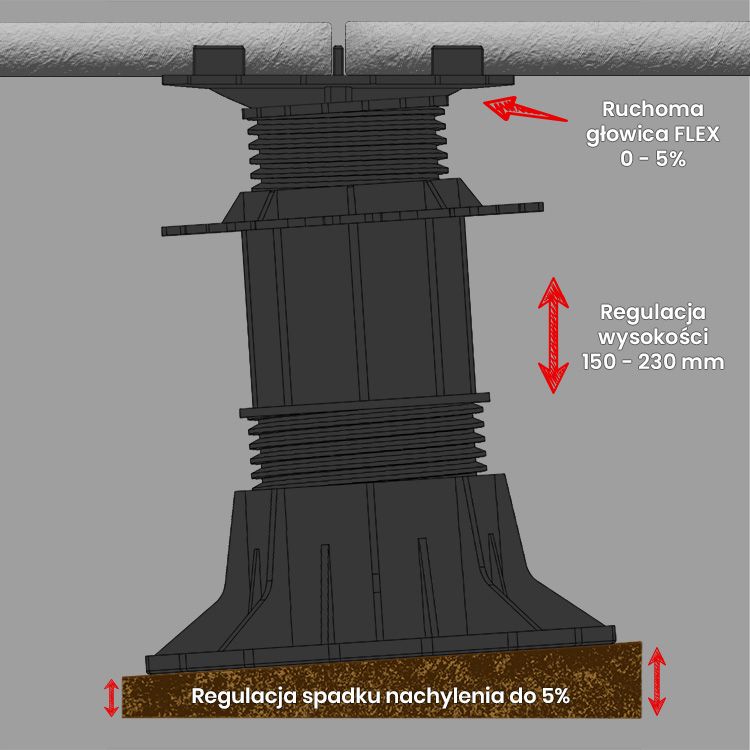

Wsporniki regulowane ETP FLEX to wsporniki samopoziomujące, dzięki którym można regulować spadek nachylenia do 5%.
