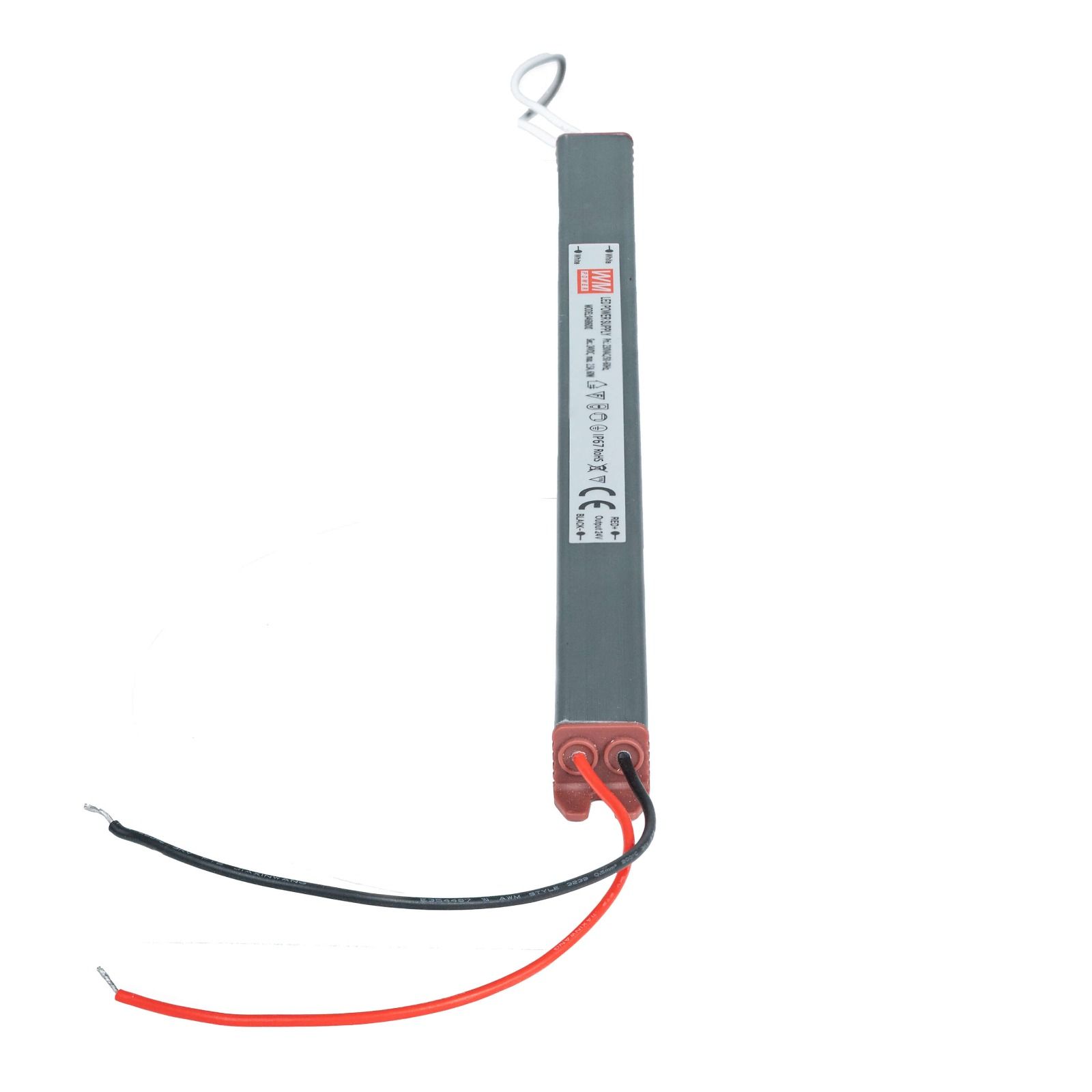

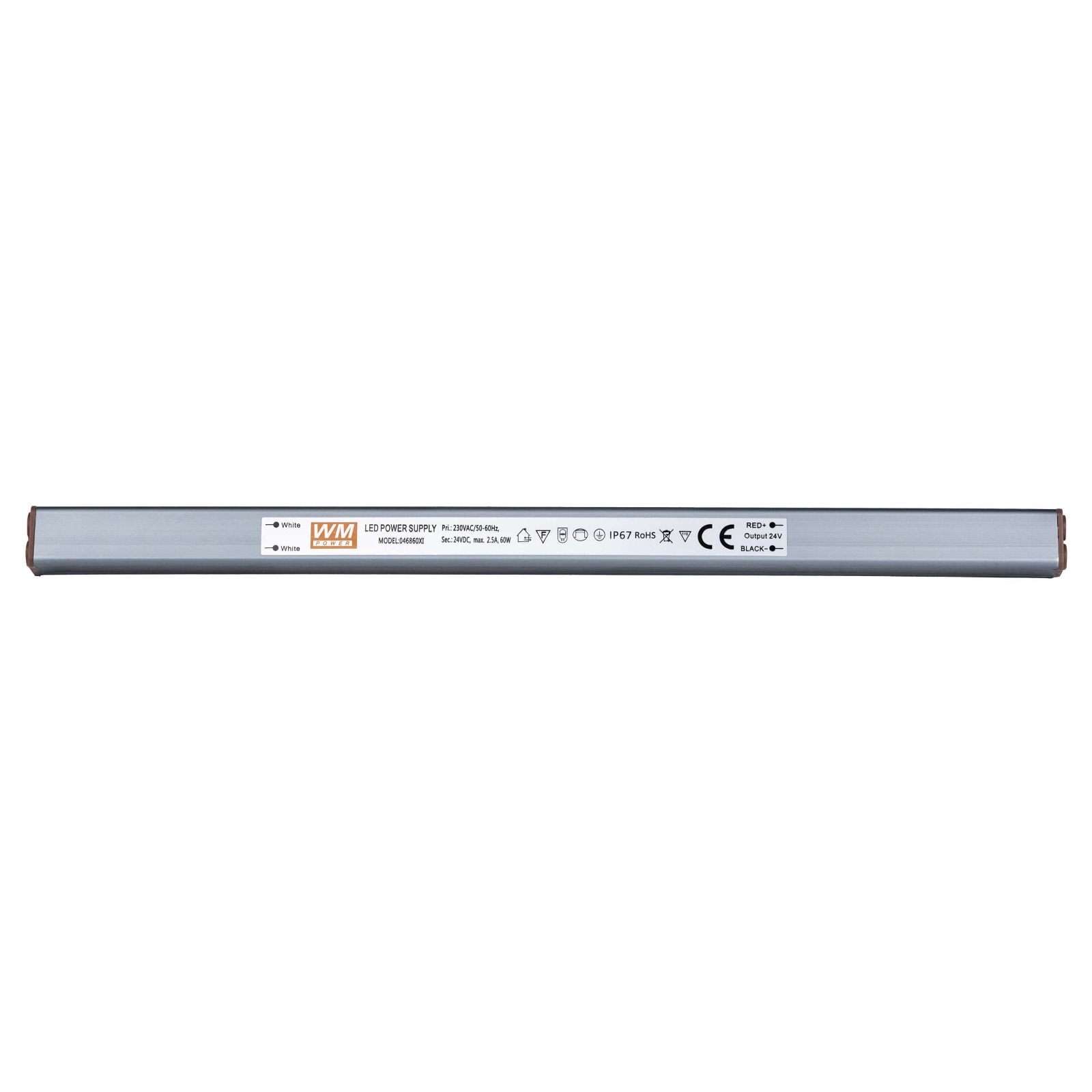

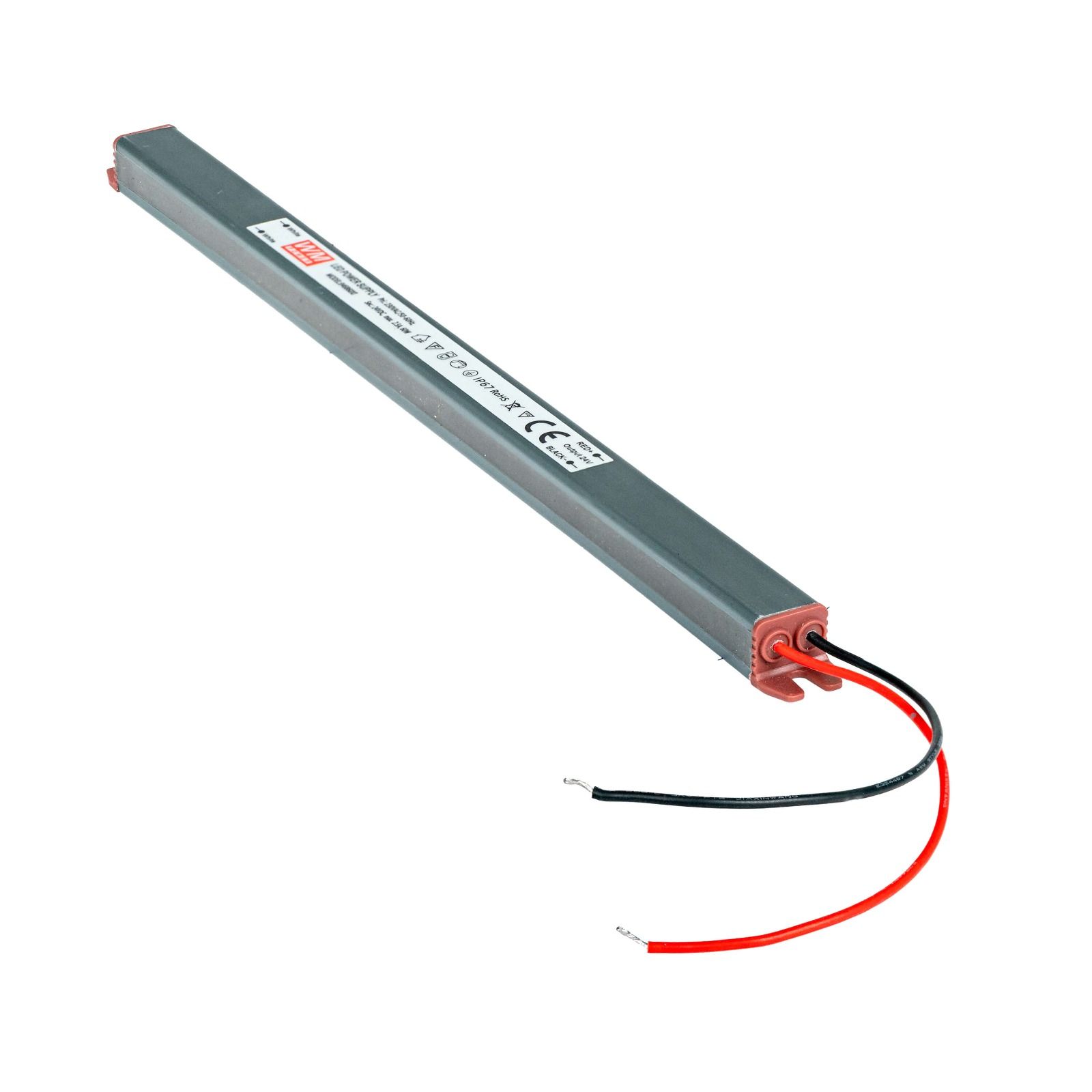

Power Supply for Fence Post LED Lamps – Super Slim | 24V DC | 60W
Description
Professional LED power supply with an exceptionally slim design, created for the most demanding lighting installations. With a width of only 18 mm, it is the ideal solution for installation in places where standard power supplies simply do not fit – e.g., in fence posts.
Key features:
- Long & slim design: The exceptionally long and narrow shape allows for installation inside fence posts, decorative strips, and narrow LED profiles.
- Voltage stabilization: Precise 24V DC voltage eliminates flickering and voltage drops, ensuring uniform illumination along the entire length of the line.
- Full Hermeticity (IP67): it is 100% dustproof and resistant to strong water jets, moisture, and short-term immersion.
- Ideal for outdoor applications
Application

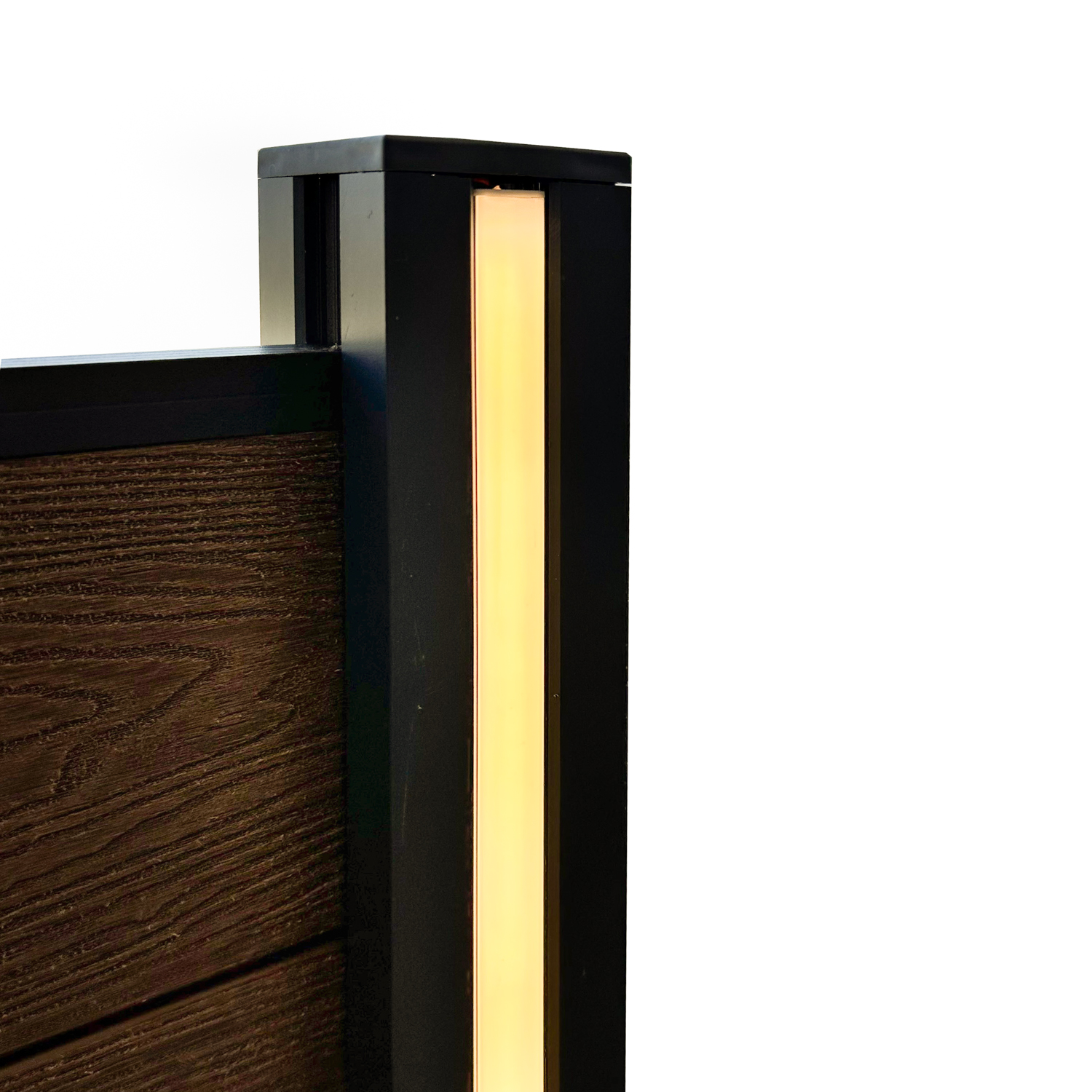

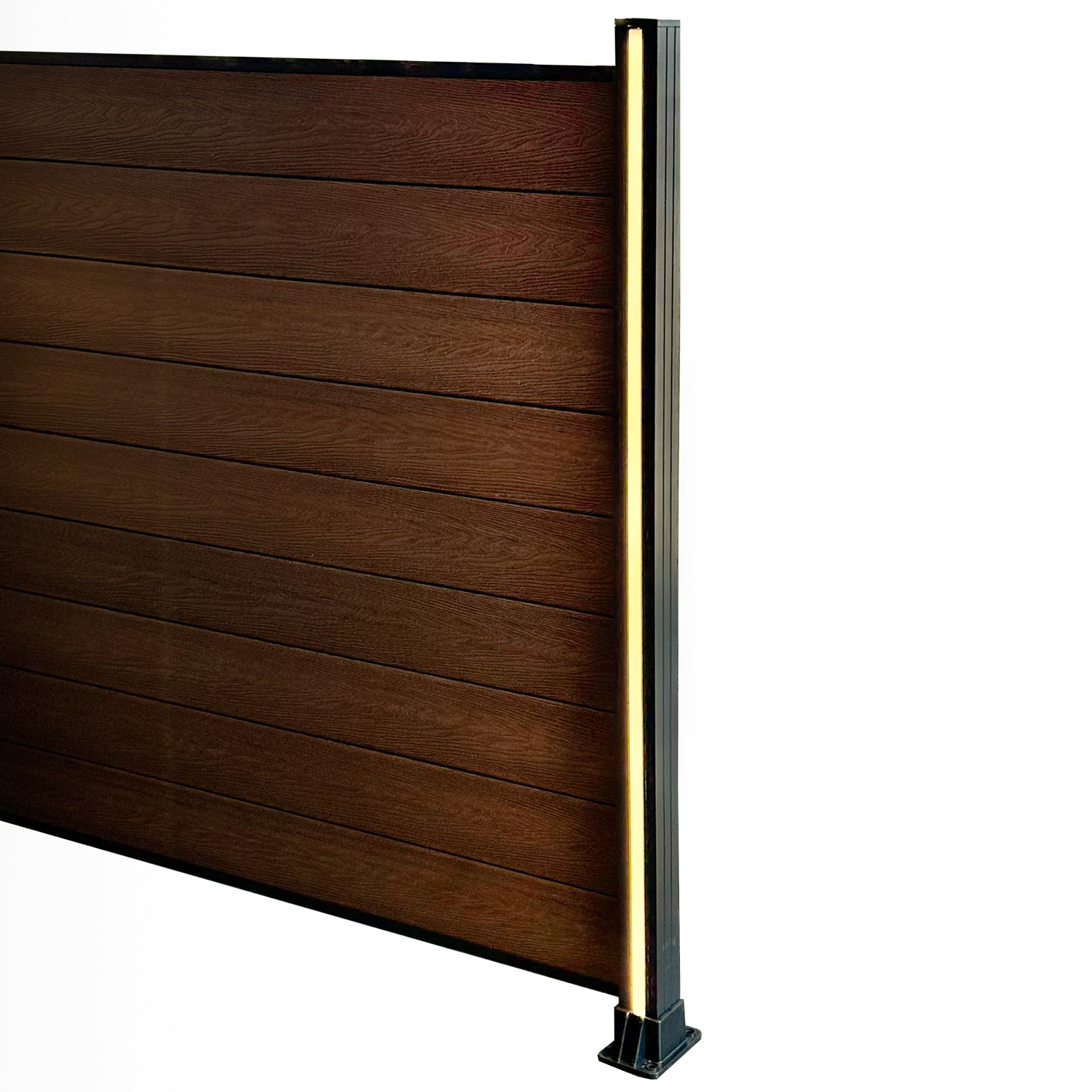

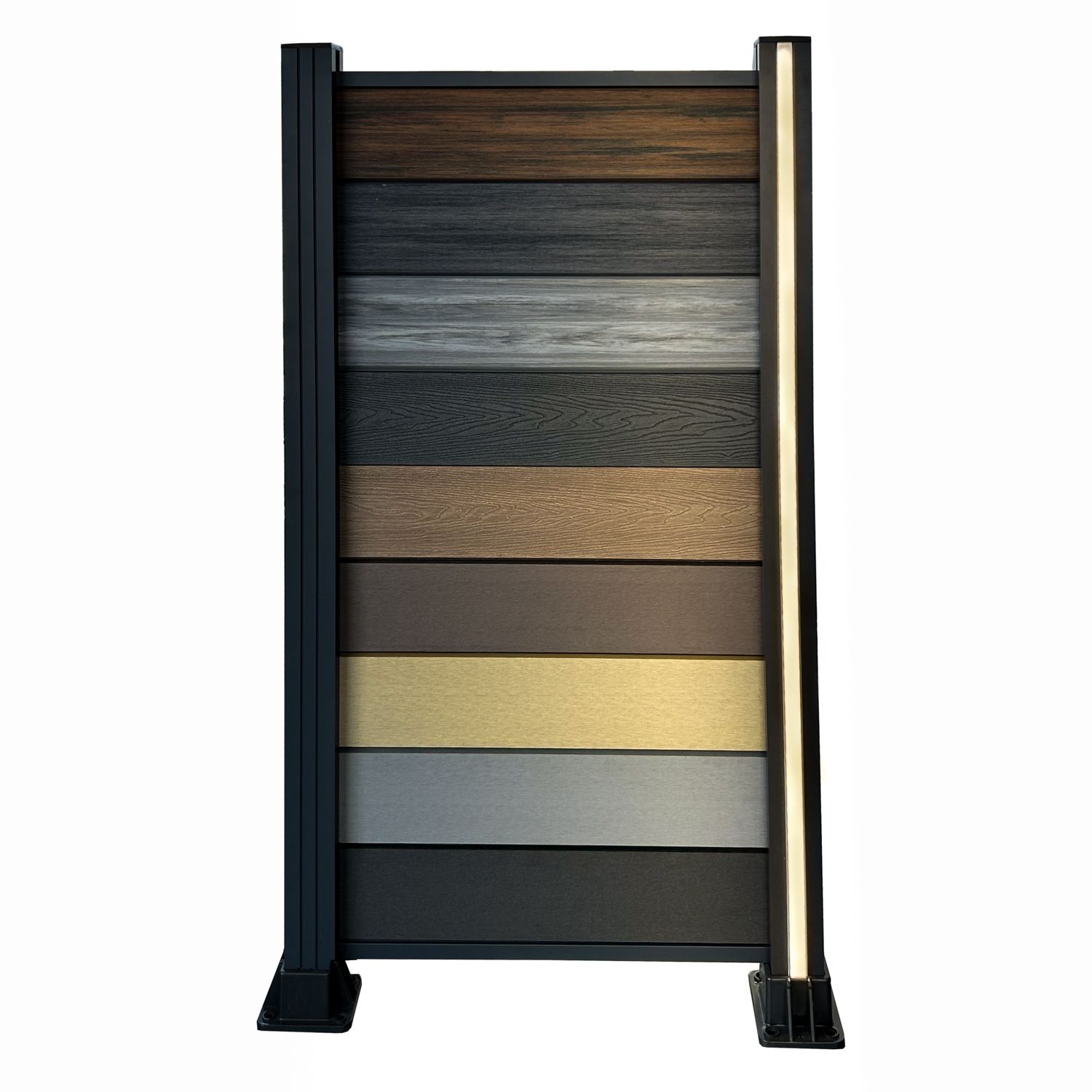

Powering linear LED lamps, lighting for fence posts
How many lamps can you connect?
The 60W power supply (maintaining a power reserve) allows for powering:
- up to 5 lamps 150 cm (9W)
- up to 10 lamps 80 cm (5W)
- or a combination, e.g., 3 × 150 cm + 4 × 80 cm; 4 × 150 cm + 2 × 80 cm
Always leave a power reserve – at least 10–20% – so the power supply works without overload and ensures long-lasting, reliable operation.
If you plan a larger number of lamps, add another power supply and divide the installation into sections.
Parameters
| Dimensions | 37,5 x 1.8 x 1.5 cm |
|---|---|
| Maximum Power | 60W |
| Input Voltage | 180-260 V |
| Output Voltage | 24V DC (constant) |
Assembly and documents
LED lamp installation manual for fence posts
- Insert the lamp into the post profile – slide the lamp from the top into the dedicated slot in the post (intended for lamps or strips installation)

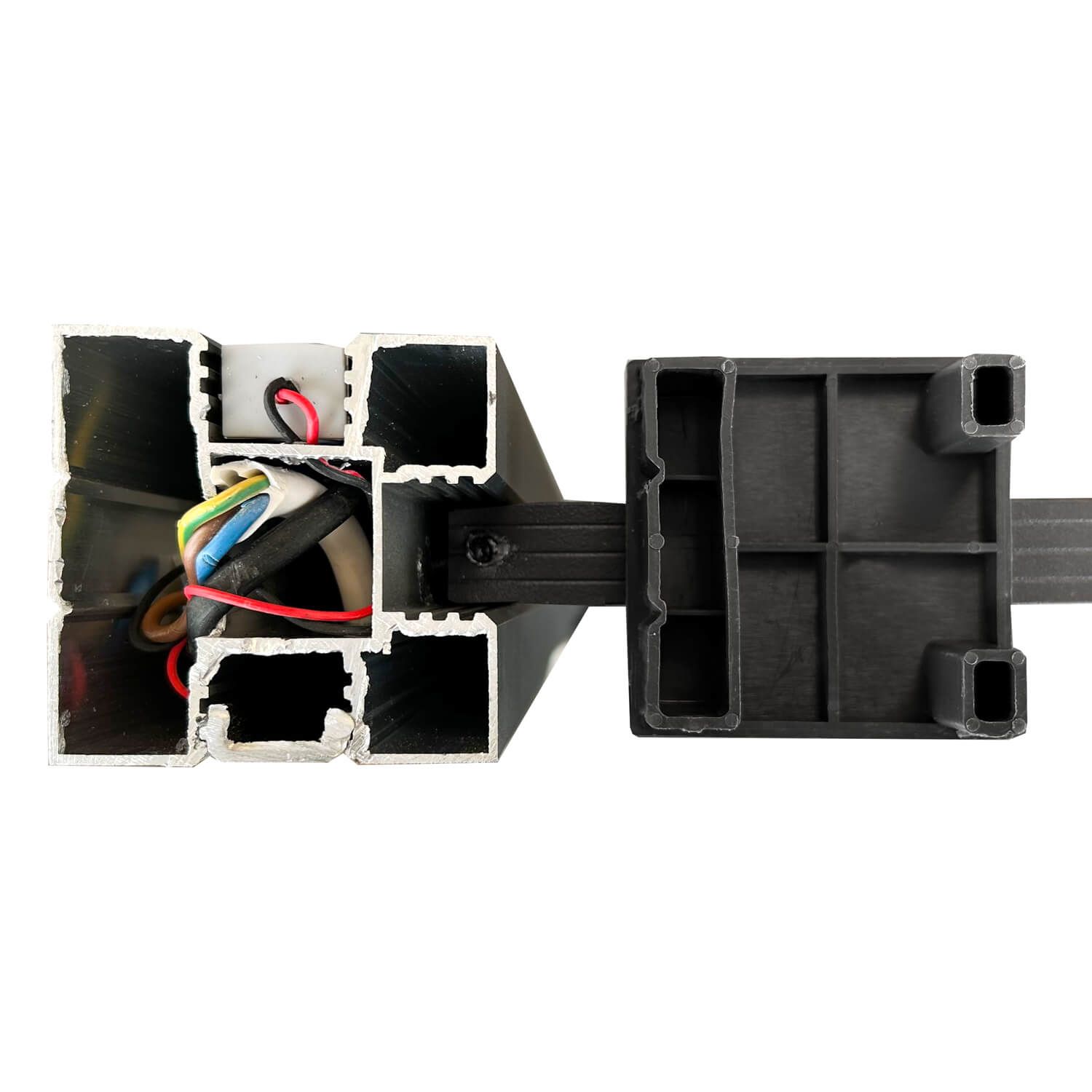

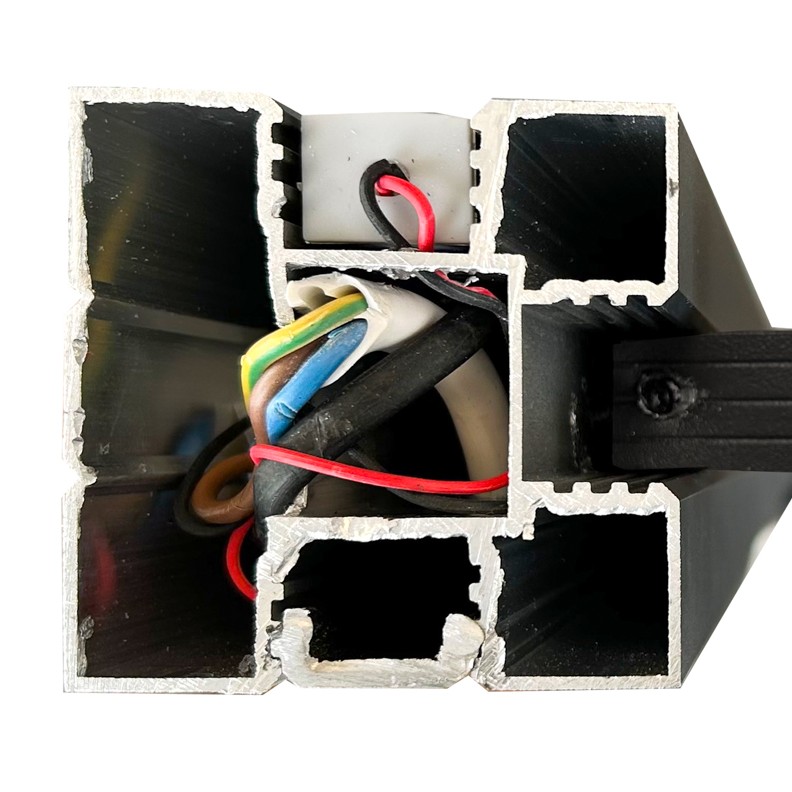

- Route the lamp cables – lead them to the inside of the post or through the hole in the base
- Connect the lamp to the power supply (see instructions below)
- Place the power supply in a dry place (e.g., airtight junction box, technical box)
- Connect the power supply to the power source and test:
- Once the lamp and 230V power supply are connected, the lamp should light up.
- Check for proper operation – no flickering, uniform light.
Manual for connecting a linear LED lamp to a 60W 24V power supply
- Prepare the components:
- Linear LED lamp (24V DC)
- 60W / 24V DC power supply
- 230V power cable (with a plug or for a junction box)
- Connect 230V power to the power supply ("INPUT"):
- L (phase) – brown wire
- N (neutral) – blue wire
- ⏚ (PE ground) – yellow-green wire
- Connect the lamp to the power supply output ("OUTPUT"):
- V+ – red wire from the lamp (plus)
- V– – black wire from the lamp (minus)
- If the power supply has 2 pairs of V+ and V–, you can use either one.
- Check the connections:
- Ensure that all screws are firmly tightened.
- Ensure polarity compliance (red to V+, black to V–).
- Connect the power supply to 230V power:
- Insert the plug into the socket or connect the cable to the installation.
- The lamp should light up after a moment.
Important notes:
- Do not work with the power connected – always disconnect the power first.
- Do not exceed the maximum power of the power supply – leave at least 10–20% reserve.
