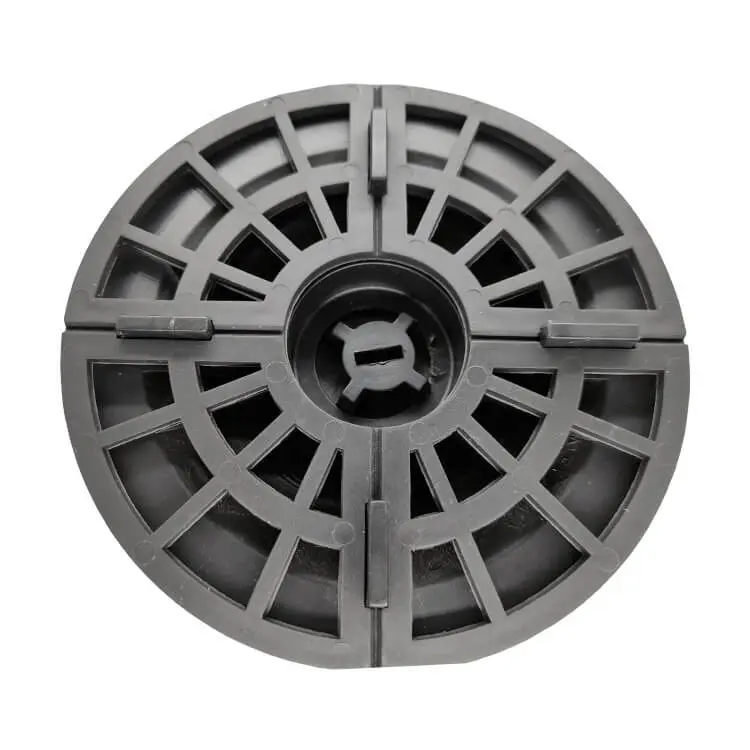

Adjustable Self-Leveling Tiles Pedestal ETP Flex 150-230 mm

Key features:

• Ability to be used on surfaces with slopes up to 5%

• Fast, simple, and cost-effective installation of the supporting structure
• Easy leveling of plates and joists
• Smooth height adjustment
• Possibility of routing installations under the plates
• Reduction of the floor’s weight
• Free drainage of water
• Continuous air circulation
• Frost – resistant

Technical details:

• Load capacity: 200kg per pedestal
• Material: Reinforced polypropylene (PP)
• Resistance to acids and bases
• Resistance to UV radiation
• Resistance to temperatures from -20°C to +60°C
• High resistance to impacts, cracks, and weather conditions
• Optimal pressure distribution
• 100% recyclable material

Use:

Ventilated terraces, stoneware tiles

Pedestals are mounted to the ground using quick-mount dowels 6 x 40 or 6 x 60 mm (depending on its thickness).

You might also need Shock-Absorbing Pads.

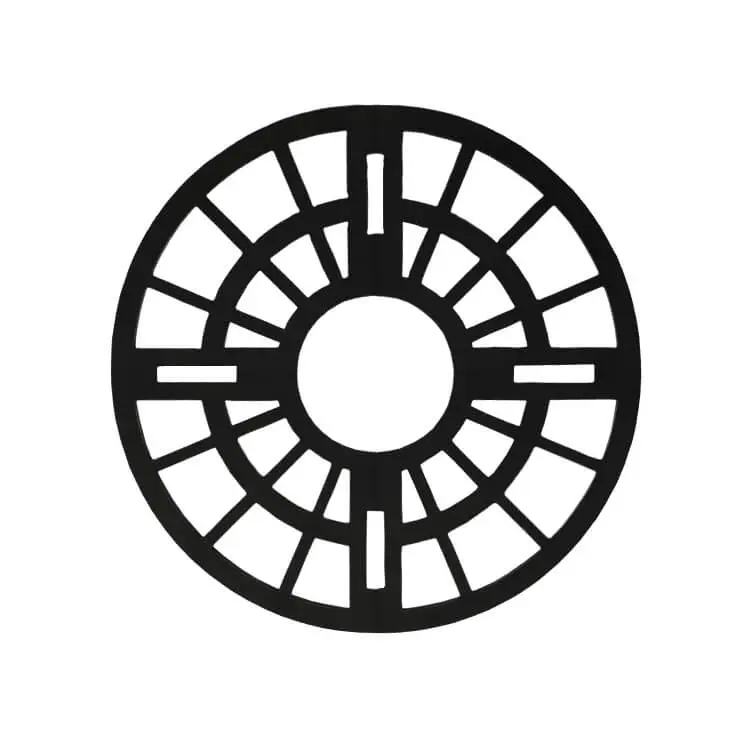

Dedicated shock-absorbing pads are available for pedestals. The pads are used to dampen footstep sounds and vibrations. Ceramic tiles laid on the pads do not produce sounds, are more stable, and do not creak with slight movement.

The pads are made of very durable and weather-resistant rubber/PVC material, resistant to weather conditions and UV radiation.

The pads can be used to adjust minor height differences between the plates. The available thickness of the shock-absorbing pads for adjustable self-leveling Flex head supports is 3 mm.

Dimensions:

• Minimum support height – 150 mm
• Maximum support height – 230 mm
• Foot diameter – 160 mm
• Upper plate diameter – 120 mm
• Grout width – 3 mm

Available sizes:

• Adjustable Self-Leveling Tiles Pedestal ETP Flex 25-30mm
• Adjustable Self-Leveling Tiles Pedestal ETP Flex 30-45mm
• Adjustable Self-Leveling Tiles Pedestal ETP Flex 45-80mm
• Adjustable Self-Leveling Tiles Pedestal ETP Flex 75-156mm
